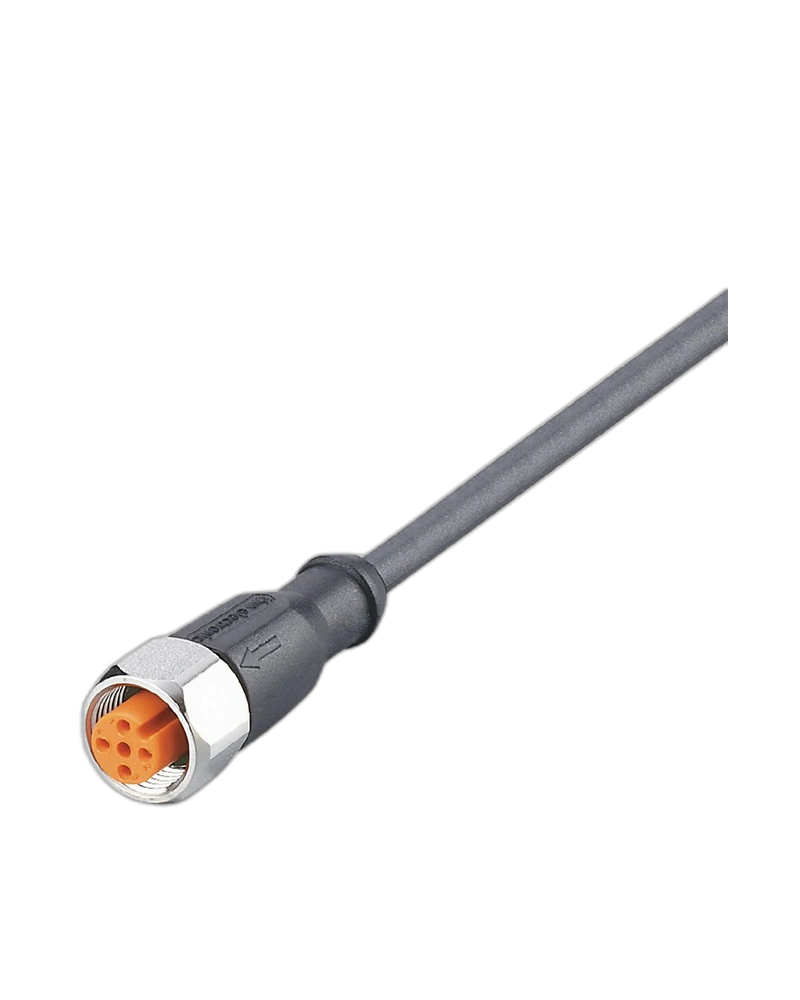

IFM EVM069 is a 5 m connecting cable with a straight M12 socket and four-core PUR cable. It provides reliable sensor connectivity for mobile machines and demanding industrial environments where durability and high protection are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Socket
The straight M12 socket provides a stable connection with compatible sensors and automation components. It is suitable for standard machine installations and direct cable routing.
5 m Cable Length
The 5 m cable offers flexible reach between sensors and control equipment. It is suitable for machinery where devices are installed at moderate distances.
Four-Core Electrical Design
The four-core cable construction supports dependable signal and electrical transmission. It provides a practical connection solution for industrial automation systems.
Robust PUR Cable
The PUR cable is designed for demanding mobile applications and provides good resistance to mechanical stress. It is suitable for installations exposed to movement and vibration.
Secure Electrical Connection
Gold-plated contacts support reliable conductivity, while the stainless-steel locking mechanism helps prevent unwanted loosening during operation.
Protection for Harsh Conditions
The cable is designed to withstand vibration, shock, rapid temperature changes, salt spray, oils and coolants. It is also suitable for drag-chain applications.
Provides flexible 5 m connectivity
Offers reliable straight M12 connection
Supports four-core transmission
Provides strong mechanical durability
Suitable for dynamic applications
Resists oils and coolants
Mobile machines
Industrial automation
Sensor installations
Machine control systems
Drag-chain applications
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM069 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH046VAS0005H04 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
