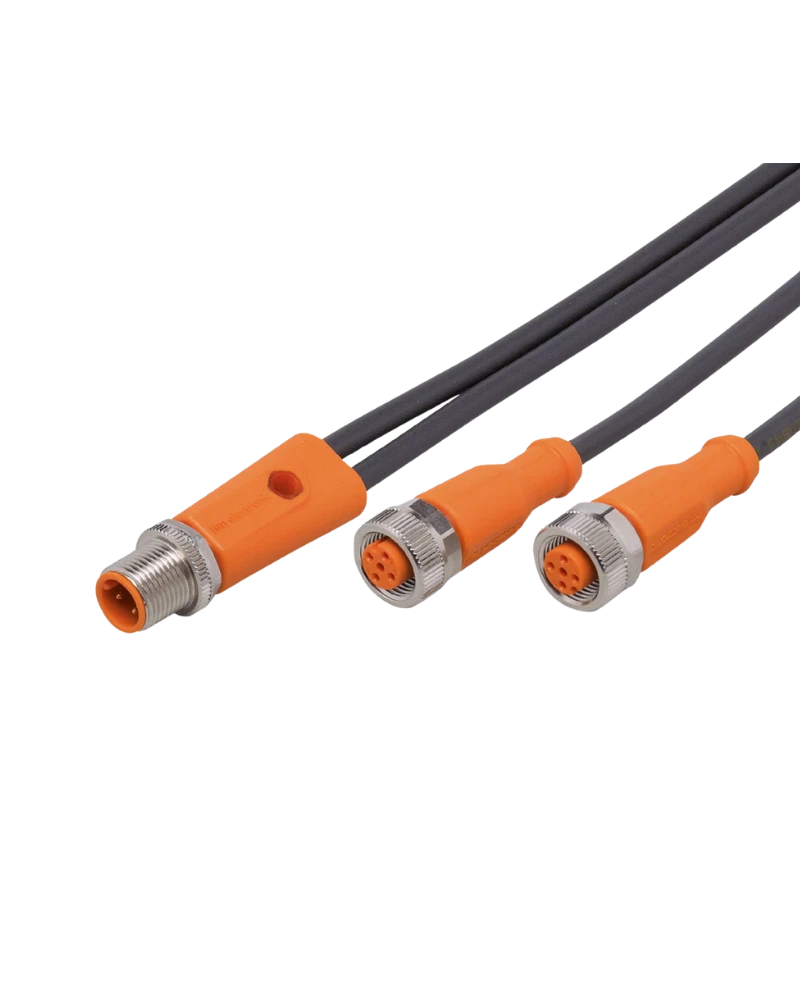

IFM EVM064 is a compact Y connection cable designed for connecting an M12 plug to two M8 sockets. Its rugged construction, gold-plated contacts and high protection rating make it suitable for welding applications, mobile machinery and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Design
EVM064 features a practical Y-splitter configuration with one M12 plug and two M8 sockets. This arrangement allows multiple compatible devices to be connected through a single compact connection point.
Compact Cable Length
The 0.12 m PUR cable provides a short and organized connection between the connected components. Its compact design is particularly useful where installation space is limited.
M12 and M8 Connectivity
The combination of M12 and M8 connectors makes the cable suitable for compatible sensors, actuators and automation components. Gold-plated contacts help provide dependable electrical conductivity.
Durable PUR Construction
The black PUR cable is designed for demanding industrial use and provides good mechanical durability. Its construction supports applications involving movement, vibration and environmental stress.
Welding Application Suitability
The cable is designed for applications where resistance to demanding industrial conditions is important. Its silicone-free and halogen-free construction supports suitable machine installation requirements.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection helps the cable withstand demanding operating conditions. It is also designed to resist vibration, shock, rapid temperature changes, salt spray, oils and coolants.
Provides practical Y-type connectivity
Connects one M12 plug with two M8 sockets
Offers compact 0.12 m cable routing
Provides reliable electrical transmission
Supports demanding industrial applications
Suitable for welding applications
Welding machinery
Mobile machines
Industrial automation systems
Sensor and actuator connections
Compact machine installations
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM064 |
| Product Type | Y Connection Cable |
| Order Code | YDOGF030VAS0,12H03STGH040VAS |
| Cable Length | 0.12 m |
| Connector | M12 Plug / 2 x M8 Socket |
| Connection Design | Y Connection |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 3 x 0.25 mm² |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Operating Voltage | 50 AC / 60 DC |
| Current Rating | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | > 2 million |
| Silicone Free | Yes |
| Halogen Free | Yes |
