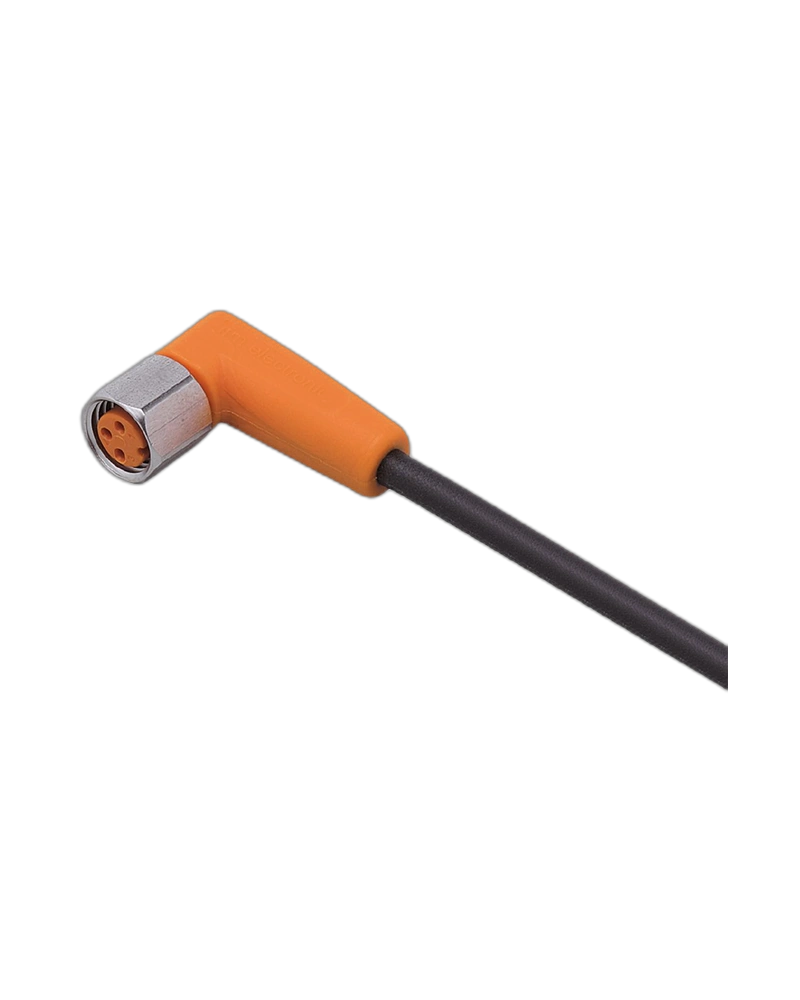

IFM EVM035 is a 15 m connecting cable with an angled M8 socket designed for mobile machines and demanding industrial environments. The extended cable length provides installation flexibility, while the angled connector supports convenient routing in restricted areas.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Socket
The angled M8 socket allows the cable to be routed conveniently in installations with limited space. It helps reduce unnecessary bending close to the connector and supports neat machine wiring.
15 m Cable Length
The 15 m cable provides extended connectivity for larger machine layouts and industrial automation systems. It offers flexibility when sensors and control components are installed at greater distances.
Four-Core Electrical Design
The four-core construction supports dependable electrical signal transmission. It provides a reliable connection between compatible sensors and automation components.
Durable PUR Cable
The PUR cable provides mechanical durability for demanding industrial and mobile applications. It is suitable for installations exposed to movement, vibration and mechanical stress.
Gold-Plated Contacts
Gold-plated contacts help maintain stable electrical conductivity and reliable signal transmission. The locking mechanism supports a secure connection during machine operation.
Harsh Industrial Protection
The cable is designed to withstand vibration, shock, rapid temperature fluctuations, salt spray, oils and coolants. This makes it suitable for particularly harsh environments and mobile applications.
Provides extended 15 m connectivity
Offers convenient angled M8 connection
Supports reliable signal transmission
Suitable for mobile machinery
Resists oils and coolants
Suitable for drag-chain applications
Mobile machines
Industrial automation
Sensor installations
Heavy-duty machinery
Machine control systems
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM035 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAF040VAS0015H04 |
| Cable Length | 15 m |
| Connector | M8 |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 4 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Sealing | FKM |
| Current Rating | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
