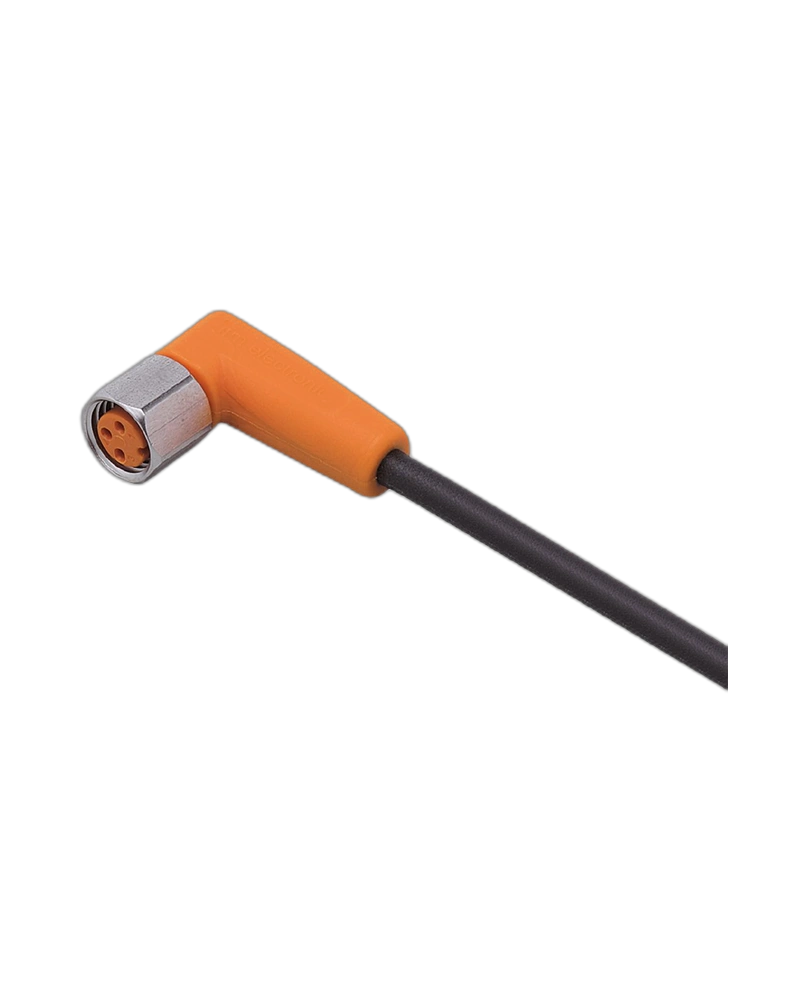

IFM EVM034 is a 10 m connecting cable with an angled M8 socket designed for mobile machinery and particularly harsh industrial environments. It provides extended connection reach, convenient cable routing and dependable performance in applications exposed to vibration, temperature changes, oils and coolants.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Socket
The angled M8 socket provides convenient cable routing where space around the sensor or connection point is limited. This design helps maintain an organized installation and reduces unnecessary cable bending.
10 m Cable Length
The 10 m cable provides extended reach for larger machines and industrial automation layouts. It enables flexible positioning of sensors, control devices and other connected components.
Four-Core Electrical Design
The four-core construction provides dependable electrical connectivity between compatible industrial devices. It supports stable transmission of signals required for sensor and automation applications.
Durable PUR Cable
The PUR cable is designed for demanding mobile and industrial environments. Its construction supports applications where the cable may experience repeated movement, vibration and mechanical stress.
Gold-Plated Contacts
Gold-plated contacts provide reliable electrical conductivity and help maintain stable signal transmission. The connector locking system also contributes to vibration and shock resistance.
Suitable for Dynamic Applications
EVM034 is suitable for drag-chain applications and demanding mobile environments. It is designed to withstand vibration, shock, rapid temperature fluctuations, salt spray, oils and coolants.
Provides extended 10 m connectivity
Offers convenient angled M8 connection
Supports reliable signal transmission
Suitable for dynamic cable movement
Resists oils and coolants
Supports drag-chain applications
Mobile machinery
Industrial automation systems
Sensor installations
Machine control systems
Dynamic cable routing
Particularly harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM034 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAF040VAS0010H04 |
| Cable Length | 10 m |
| Connector | M8 |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 4 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitable | Yes |
| Bending Cycles | > 5 million |
| Silicone Free | Yes |
| Halogen Free | Yes |
