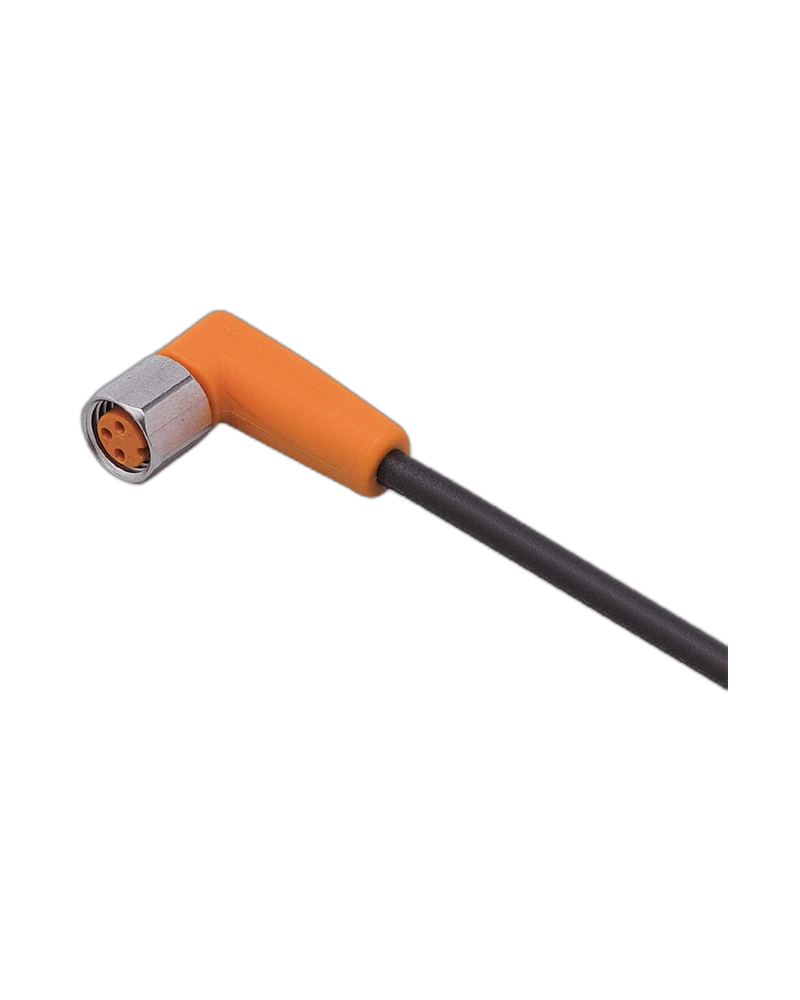

IFM EVM027 is a 15 m connecting cable with an angled A-coded M8 socket designed for mobile machines and particularly harsh industrial environments. It provides extended connectivity, reliable signal transmission and high environmental protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Socket
The angled M8 socket supports convenient cable routing and secure connection in demanding installations.
15 m Cable Length
The 15 m cable provides extended reach for industrial automation and mobile machinery.
Three-Core Electrical Design
Three 0.25 mm² conductors support reliable electrical signal transmission.
Durable PUR Cable
The black PUR cable provides reliable performance in harsh industrial environments.
Gold-Plated Contacts
Gold-plated contacts support stable and dependable electrical connections.
High IP Protection
IP65, IP67, IP68 and IP69K protection provides resistance to water and demanding conditions.
Provides extended 15 m connection length
Offers convenient angled M8 connectivity
Supports stable signal transmission
Resists vibration and shock
Resists oils and coolants
Suitable for drag-chain applications
Mobile machinery
Industrial automation systems
M8 sensor installations
Heavy-duty equipment
Machinery exposed to oils and coolants
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM027 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAF030VAS0015H03 |
| Cable Length | 15 m |
| Connector | M8 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 3 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 3 A |
| Operating Voltage | 50 V AC / 60 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
