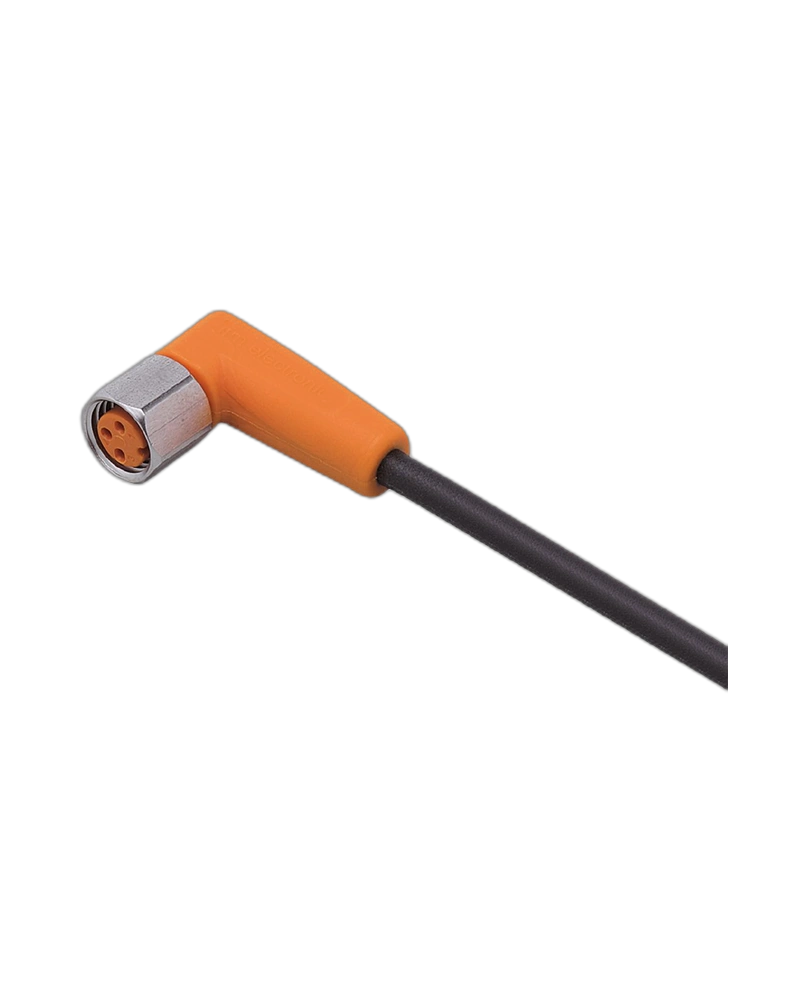

IFM EVM026 is a 10 m connecting cable with an angled A-coded M8 socket for mobile machines and harsh industrial environments. It features a durable PUR cable, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Socket
The angled M8 socket provides convenient routing and reliable connection in industrial installations.
10 m Cable Length
The 10 m cable provides extended installation flexibility.
Three-Core Electrical Design
Three 0.25 mm² conductors provide dependable electrical signal transmission.
Durable PUR Construction
The black PUR cable is suitable for demanding mobile and industrial applications.
Reliable Connection
Gold-plated contacts and stainless-steel locking components support stable connections.
High IP Protection
IP65, IP67, IP68 and IP69K protection supports harsh operating conditions.
Provides extended 10 m connectivity
Offers convenient angled M8 connection
Supports reliable signal transmission
Provides vibration and shock resistance
Resists oils and coolants
Suitable for drag-chain applications
Mobile machines
Industrial automation systems
M8 sensor installations
Heavy-duty machinery
Oil and coolant exposed environments
Harsh industrial applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM026 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAF030VAS0010H03 |
| Cable Length | 10 m |
| Connector | M8 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 3 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 3 A |
| Operating Voltage | 50 V AC / 60 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
