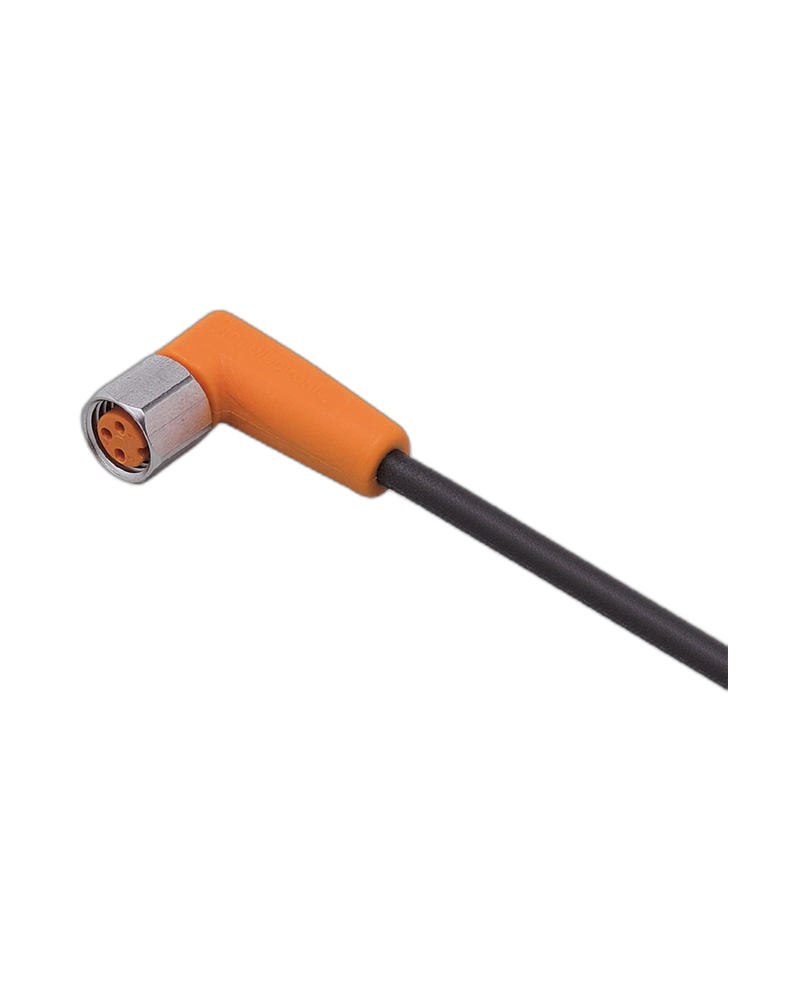

IFM EVM025 is a 5 m connecting cable with an angled A-coded M8 socket designed for mobile machinery and harsh industrial environments. It provides flexible installation, reliable signal transmission and high protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Socket
The angled M8 socket provides convenient cable routing and secure connection.
5 m Cable Length
The 5 m cable offers flexible installation between sensors and automation equipment.
Three-Core Design
Three 0.25 mm² conductors support reliable electrical connectivity.
Durable PUR Cable
The black PUR cable provides reliable performance in demanding industrial environments.
Gold-Plated Contacts
Gold-plated contacts help maintain stable signal transmission.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection supports operation in harsh environments.
Provides 5 m connection length
Offers convenient angled M8 connectivity
Supports reliable signal transmission
Resists vibration and shock
Resists oils and coolants
Suitable for drag-chain applications
Mobile machinery
Industrial automation systems
M8 sensor installations
Heavy-duty equipment
Machinery exposed to oils and coolants
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM025 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAF030VAS0005H03 |
| Cable Length | 5 m |
| Connector | M8 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 3 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 3 A |
| Operating Voltage | 50 V AC / 60 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
