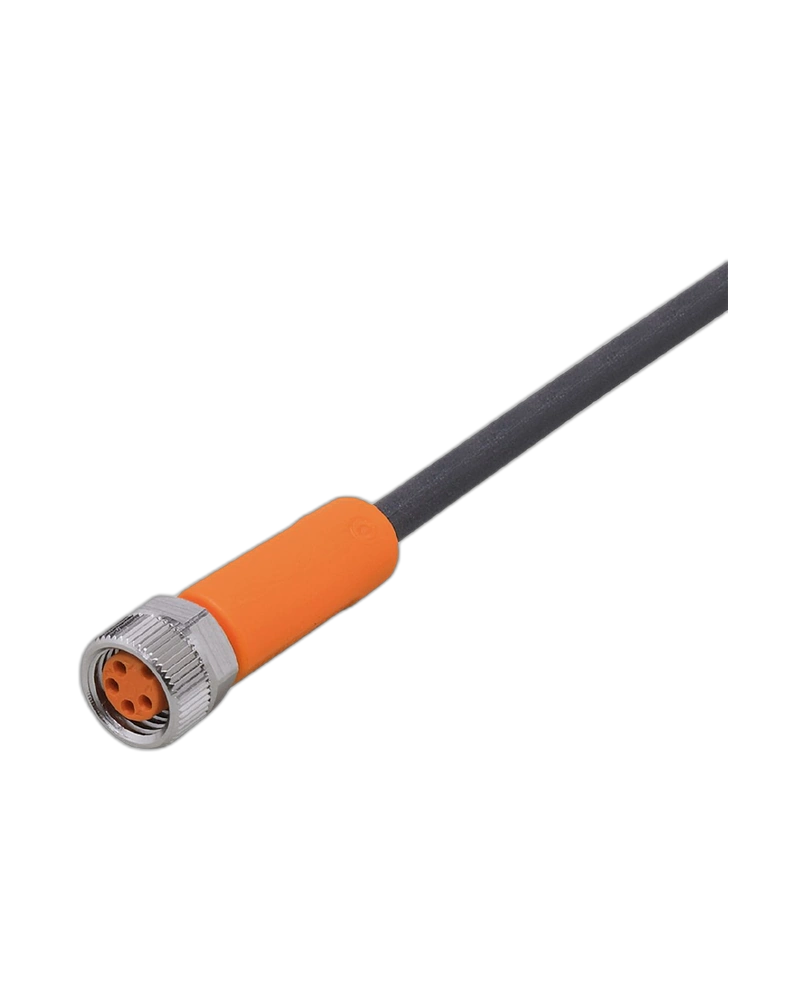

IFM EVM020 is a 2 m connecting cable with a straight A-coded M8 socket for mobile machines and harsh industrial environments. It features a PUR cable, gold-plated contacts, FKM sealing and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M8 Socket
The straight A-coded M8 socket provides secure connection to compatible sensors.
2 m Cable Length
The 2 m cable is suitable for compact industrial installations.
Three-Core Design
Three 0.25 mm² conductors provide reliable electrical connectivity.
PUR Cable
The black PUR cable provides durability for demanding industrial environments.
Gold-Plated Contacts
Gold-plated contacts support dependable signal transmission.
High IP Protection
IP65, IP67, IP68 and IP69K protection helps withstand water and harsh conditions.
Provides practical 2 m connectivity
Offers reliable M8 connection
Supports stable signal transmission
Resists vibration and shock
Suitable for mobile applications
Supports drag-chain installations
Mobile machines
Industrial automation systems
M8 sensor installations
Heavy-duty equipment
Industrial control systems
Harsh environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM020 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGF030VAS0002H03 |
| Cable Length | 2 m |
| Connector | M8 Socket |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 3 x 0.25 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 3 A |
| Operating Voltage | 50 V AC / 60 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
