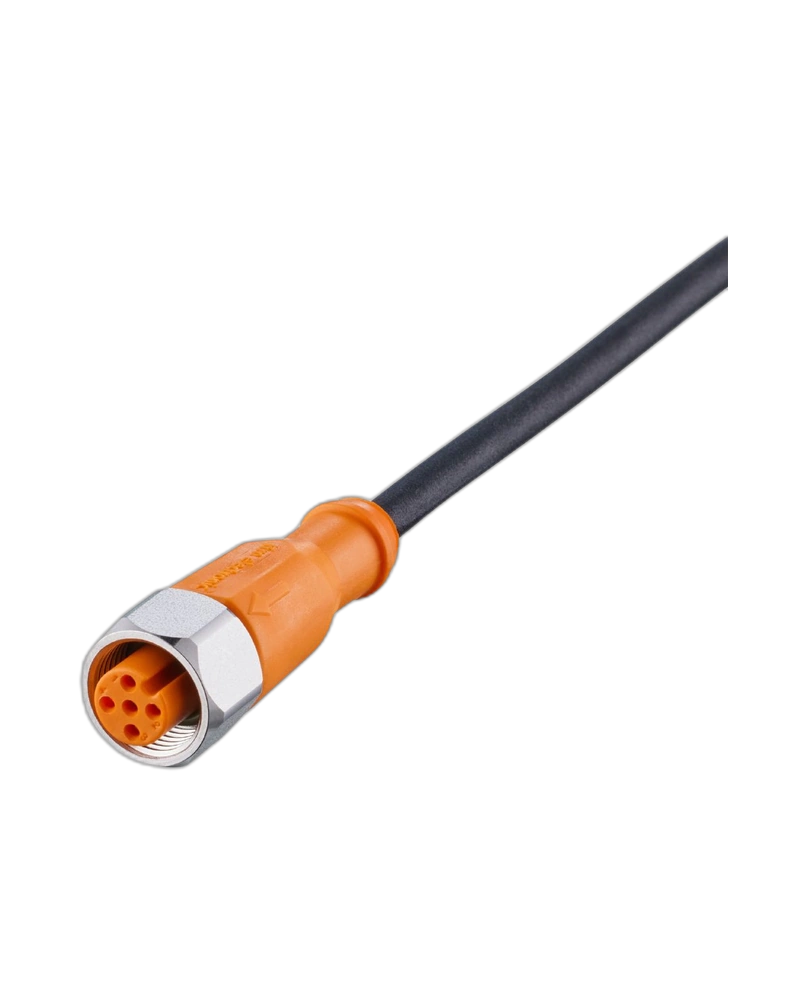

IFM EVM018 is a 15 m connecting cable with a straight A-coded M12 socket for mobile machines and harsh industrial environments. It features a durable PUR cable, gold-plated contacts, FKM sealing and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Socket
EVM018 features a straight A-coded M12 socket for reliable connection with compatible sensors and automation devices.
15 m Cable Length
The 15 m cable provides extended installation flexibility for industrial automation systems.
Four-Core Electrical Design
Four 0.34 mm² conductors support dependable electrical signal transmission.
Durable PUR Cable
The black PUR cable is suitable for demanding industrial and mobile applications.
Reliable Connection
Gold-plated contacts and stainless-steel locking components support secure electrical and mechanical connectivity.
High IP Protection
IP65, IP67, IP68 and IP69K protection provides resistance against water, dust and harsh conditions.
Provides extended 15 m connectivity
Offers reliable straight M12 connection
Provides gold-plated contacts
Supports vibration and shock resistance
Suitable for drag-chain applications
Performs reliably in harsh environments
Mobile machinery
Industrial automation systems
Sensor installations
Heavy-duty equipment
Outdoor machinery
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM018 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH040VAS0015H04 |
| Cable Length | 15 m |
| Connector | M12 Socket |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
