IFM EVM011 is a 25 m connecting cable with an angled A-coded M12 socket designed for PNP applications in mobile machines and harsh industrial environments. It provides extended connectivity with high protection, gold-plated contacts and reliable mechanical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

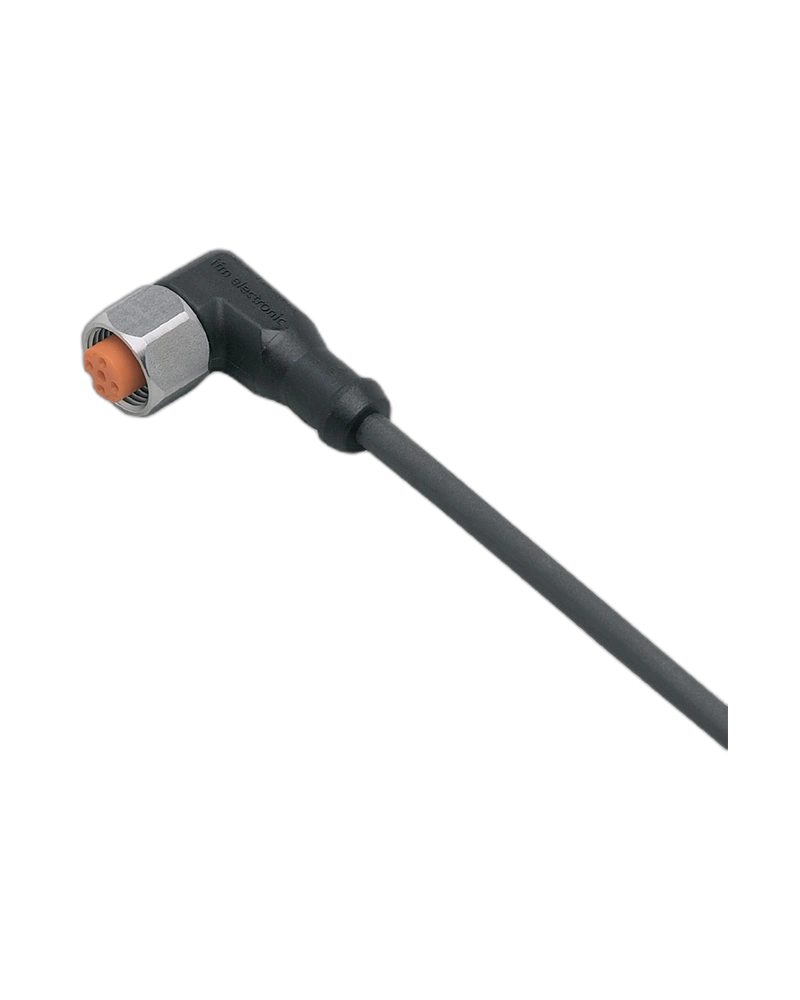

Angled M12 Socket
EVM011 features an angled A-coded M12 socket for convenient cable routing and secure installation.
25 m Cable Length
The 25 m cable provides extended reach for large machinery and industrial automation systems.
PNP Electrical Design
The cable is designed for PNP applications requiring dependable sensor connectivity.
Four-Core Construction
Four 0.34 mm² conductors provide reliable electrical signal transmission.
Harsh Environment Resistance
The cable is designed to withstand vibration, shock, rapid temperature changes and salt spray.
High Protection
IP65, IP67, IP68 and IP69K protection supports reliable performance in demanding environments.
Provides extended 25 m connectivity.
Supports PNP sensor applications.
Offers reliable angled M12 connection.
Provides resistance to vibration and shock.
Withstands rapid temperature changes and salt spray.
Suitable for drag-chain applications.
Mobile machinery
PNP sensor systems
Industrial automation equipment
Heavy-duty machinery
Outdoor industrial applications
Harsh operating environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM011 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0025H04 |
| Cable Length | 25 m |
| Connector | M12 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Electrical Design | PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
