IFM EVM009 is a 10 m connecting cable with an angled A-coded M12 socket designed for PNP applications in mobile machines and harsh industrial environments. It provides reliable signal transmission, high IP protection and resistance to demanding conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

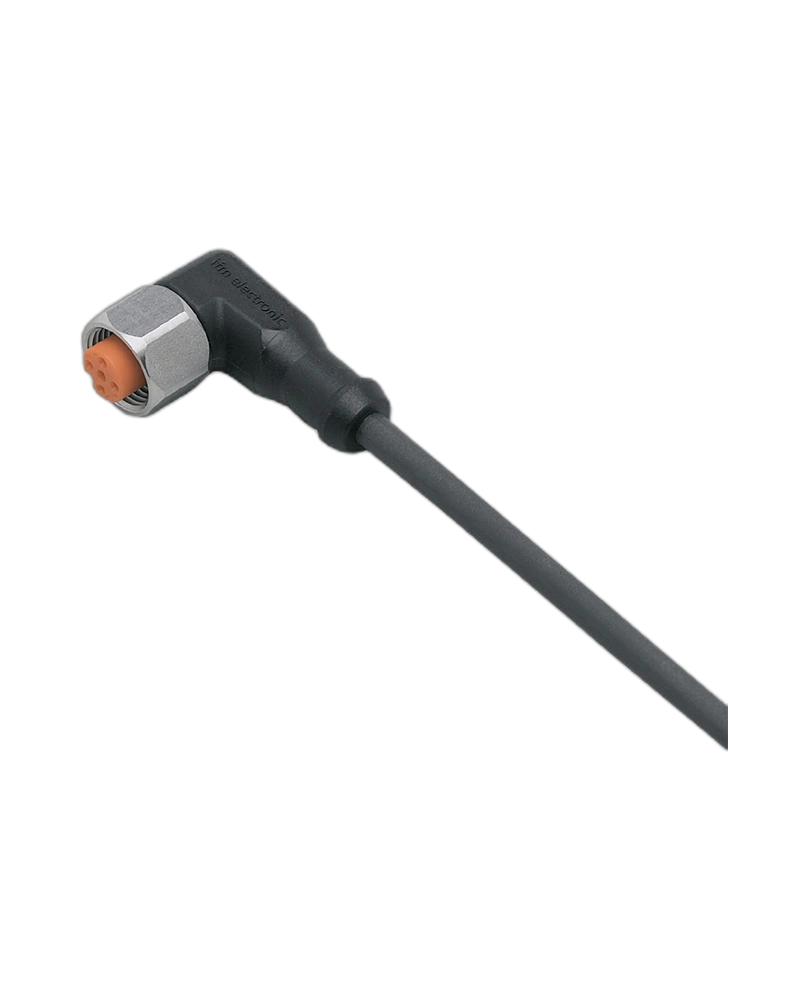

Angled M12 Socket
EVM009 features an angled A-coded M12 socket for convenient installation and secure connection.
10 m Cable Length
The 10 m cable provides extended connectivity for industrial automation and sensor installations.
PNP Electrical Design
The cable supports PNP output applications and reliable sensor signal transmission.
Four-Core Construction
Four 0.34 mm² conductors provide stable electrical connectivity.
Harsh Environment Performance
The cable provides resistance to vibration, shock, fast temperature changes and salt spray.
High Protection
IP65, IP67, IP68 and IP69K protection supports reliable operation in demanding environments.
Provides extended 10 m connectivity.
Supports PNP sensor applications.
Offers reliable angled M12 connection.
Resists vibration and shock.
Provides resistance to salt spray and temperature changes.
Suitable for drag-chain applications.
Mobile machines
PNP sensor installations
Industrial automation systems
Heavy-duty equipment
Outdoor machinery
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM009 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0010H04 |
| Cable Length | 10 m |
| Connector | M12 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Electrical Design | PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Operating Voltage | 10 to 36 V DC |
| Current Rating | 4 A |
| Contacts | Gold-plated |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
