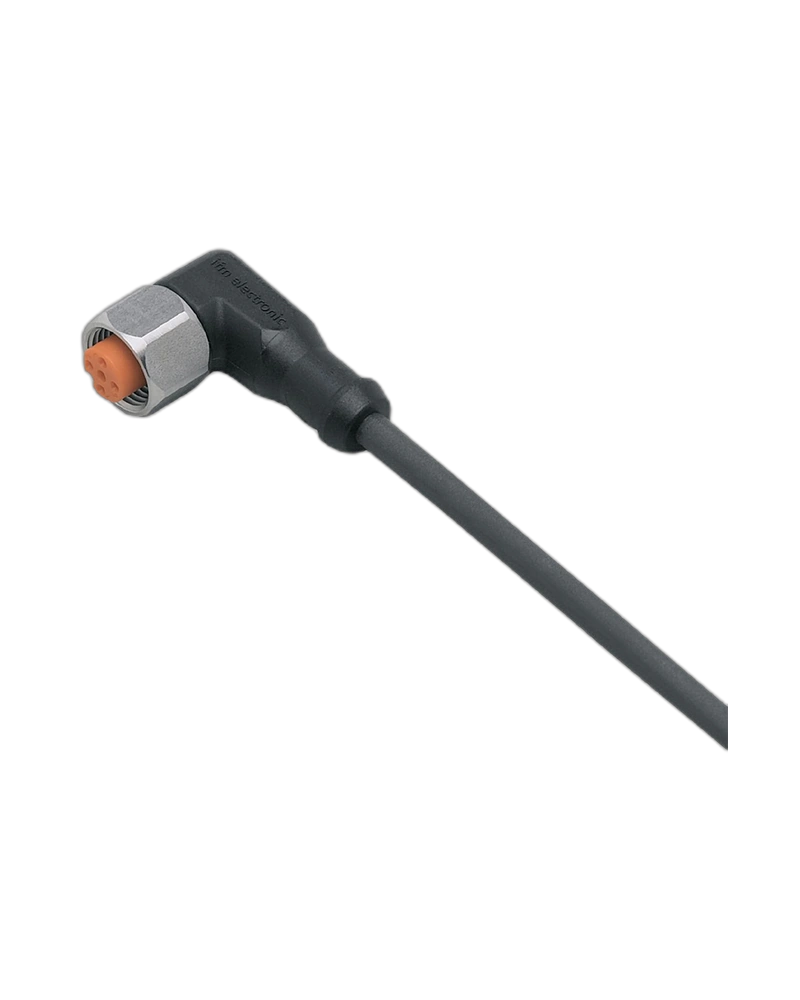

IFM EVM007 is a 2 m connecting cable with an angled A-coded M12 socket designed for mobile machines and particularly harsh industrial environments. It provides reliable PNP connectivity with high protection and durable construction.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
EVM007 features an angled A-coded M12 socket for convenient installation and reliable connection.
2 m Cable Length
The 2 m cable provides practical connectivity for sensors and automation components.
PNP Electrical Design
The cable is designed for compatible PNP industrial applications with reliable signal transmission.
Four-Core Construction
Four 0.34 mm² conductors provide dependable electrical connectivity.
Harsh Environment Resistance
The cable is designed to withstand vibration, shock, rapid temperature changes and salt spray.
High Protection
IP65, IP67, IP68 and IP69K protection supports demanding industrial applications.
Provides reliable 2 m connectivity.
Offers angled A-coded M12 connection.
Supports PNP industrial applications.
Resists vibration and shock.
Withstands rapid temperature fluctuations and salt spray.
Suitable for drag-chain applications.
Mobile machines
PNP sensor installations
Industrial automation systems
Heavy-duty machinery
Outdoor industrial equipment
Harsh operating environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM007 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0002H04 |
| Cable Length | 2 m |
| Connector | M12 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Electrical Design | PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Operating Voltage | 10 to 36 V DC |
| Current Rating | 4 A |
| Contacts | Gold-plated |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
