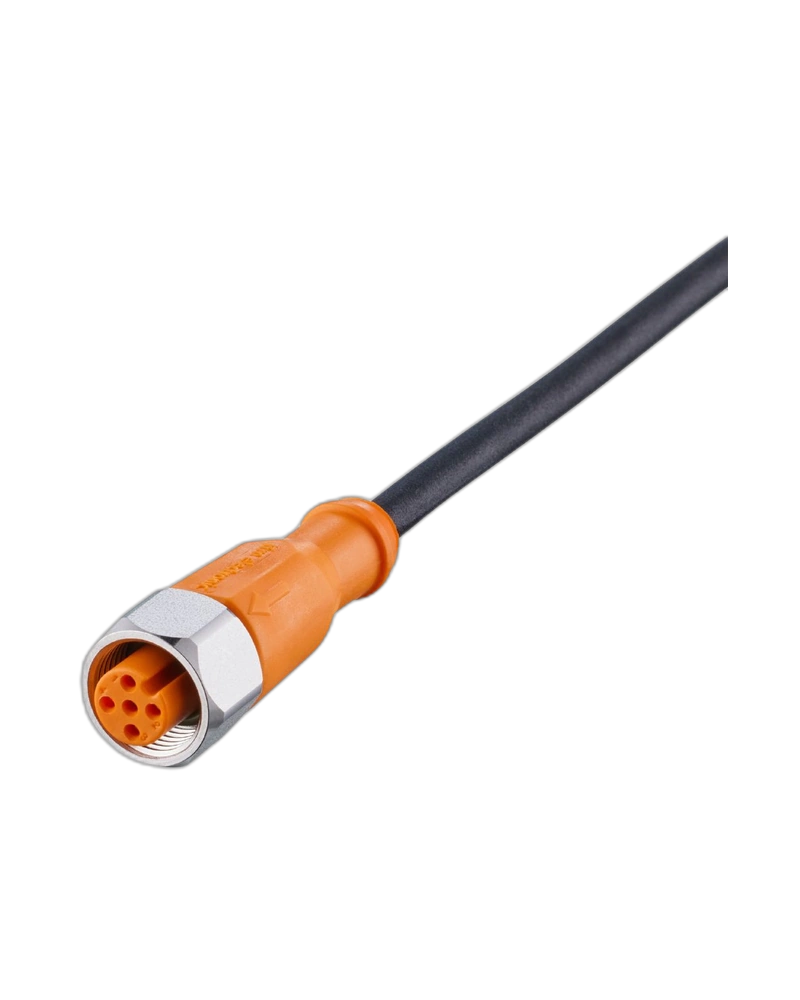

IFM EVM002 is a 5 m connecting cable with a straight A-coded M12 socket designed for mobile machines and harsh industrial environments. Its PUR cable, gold-plated contacts, FKM sealing and high IP protection provide reliable performance in demanding conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Socket
EVM002 features a straight A-coded M12 socket for reliable connection with compatible sensors and automation equipment.
5 m Cable Length
The 5 m black PUR cable provides extended installation flexibility for industrial and mobile applications.
Four-Core Electrical Design
Four 0.34 mm² conductors support reliable signal transmission between connected devices.
Durable PUR Construction
The PUR cable is designed for demanding applications and provides resistance to oils and coolants.
Harsh Environment Performance
EVM002 is designed to withstand vibration, shock, rapid temperature changes and salt spray.
High Protection
IP65, IP67, IP68 and IP69K protection supports reliable operation in demanding industrial environments.
Provides reliable 5 m M12 connection for industrial applications.
Offers gold-plated contacts for dependable signal transmission.
Provides resistance to vibration and shock.
Supports fast temperature fluctuations and salt-spray exposure.
Provides resistance to oils and coolants.
Suitable for drag-chain applications.
Mobile machinery
Heavy-duty industrial equipment
Sensor installations
Automation systems
Machinery exposed to oils and coolants
Harsh outdoor and industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM002 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH040VAS0005H04 |
| Cable Length | 5 m |
| Connector | 1 x M12 Socket |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Drag Chain Suitable | Yes |
| Halogen Free | Yes |
| Silicone Free | Yes |
