IFM EVF727 is a 20 m connecting cable with an angled A-coded M12 plug designed for hygienic and wet food-industry applications. It provides reliable four-core connectivity with gold-plated contacts, high IP protection and a durable halogen-free construction.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

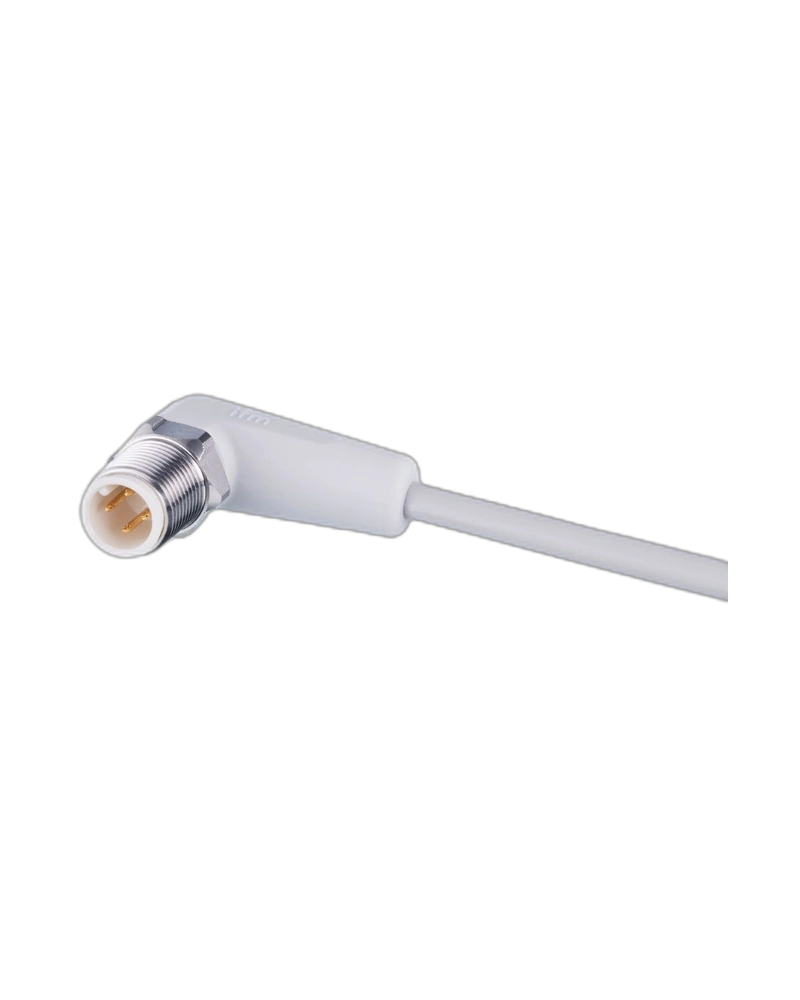

Angled M12 Plug
EVF727 features an angled A-coded M12 plug that supports convenient routing and reliable connection to compatible industrial devices.
20 m Cable Length
The 20 m grey MPPE cable provides extended reach for large machinery and industrial automation installations.
Four-Core Electrical Design
The cable uses four 0.34 mm² conductors for dependable electrical connectivity.
Hygienic Construction
The halogen-free and silicone-free construction is suitable for hygienic and wet areas in food-processing applications.
Reliable Mechanical Design
Gold-plated contacts and stainless-steel locking components provide reliable electrical and mechanical performance.
High Protection
IP65, IP67, IP68 and IP69K protection supports reliable performance in wet and washdown environments.
Provides an extended 20 m connection length.
Offers reliable angled A-coded M12 connectivity.
Supports four-core electrical connections.
Provides gold-plated contacts for reliable signal transmission.
Offers high protection against water and moisture.
Suitable for drag-chain applications.
Food-processing machinery
Packaging systems
Industrial automation equipment
Sensor installations
Hygienic machinery
Wet and washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF727 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAH040VAS0020P04 |
| Cable Length | 20 m |
| Connector | 1 x M12 Plug |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Housing Material | PP, Halogen-free |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
