IFM EVF726 is a 15 m connecting cable with an angled A-coded M12 plug designed for hygienic and wet food-industry applications. It features four-core MPPE construction, gold-plated contacts, high IP protection and drag-chain suitability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

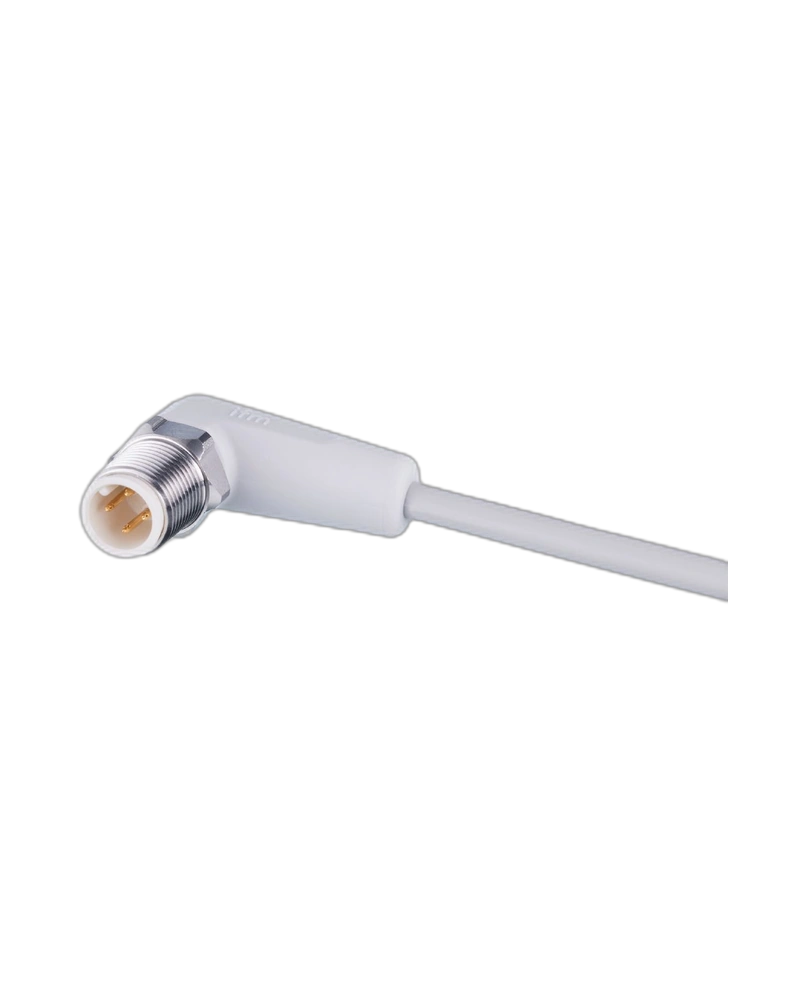

Angled M12 Plug
EVF726 uses an angled A-coded M12 plug for convenient installation and secure connection with compatible sensors and automation devices.
15 m Cable Length
The 15 m grey MPPE cable provides extended installation reach for industrial machinery and automation systems.
Four-Core Electrical Design
Four 0.34 mm² conductors provide reliable electrical connectivity for compatible automation applications.
Hygienic Construction
The halogen-free and silicone-free cable construction is suitable for hygienic and wet areas in the food industry.
Durable Connection
Gold-plated contacts and stainless-steel locking components provide dependable electrical and mechanical performance.
High Protection
IP65, IP67, IP68 and IP69K protection helps withstand water, moisture and cleaning conditions.
Provides a 15 m connection length for extended installations.
Offers angled A-coded M12 connectivity.
Provides four-core electrical construction.
Features gold-plated contacts for reliable signal transmission.
Supports hygienic and wet food-industry applications.
Suitable for drag-chain installations.
Food-processing equipment
Packaging machinery
Industrial automation systems
Sensor installations
Hygienic production equipment
Wet and washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF726 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAH040VAS0015P04 |
| Cable Length | 15 m |
| Connector | 1 x M12 Plug |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Housing Material | PP, Halogen-free |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
