IFM EVF725 is a 20 m connecting cable with an angled A-coded M12 plug designed for hygienic and wet food-industry applications. Its five-core MPPE cable, gold-plated contacts and high IP protection provide reliable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

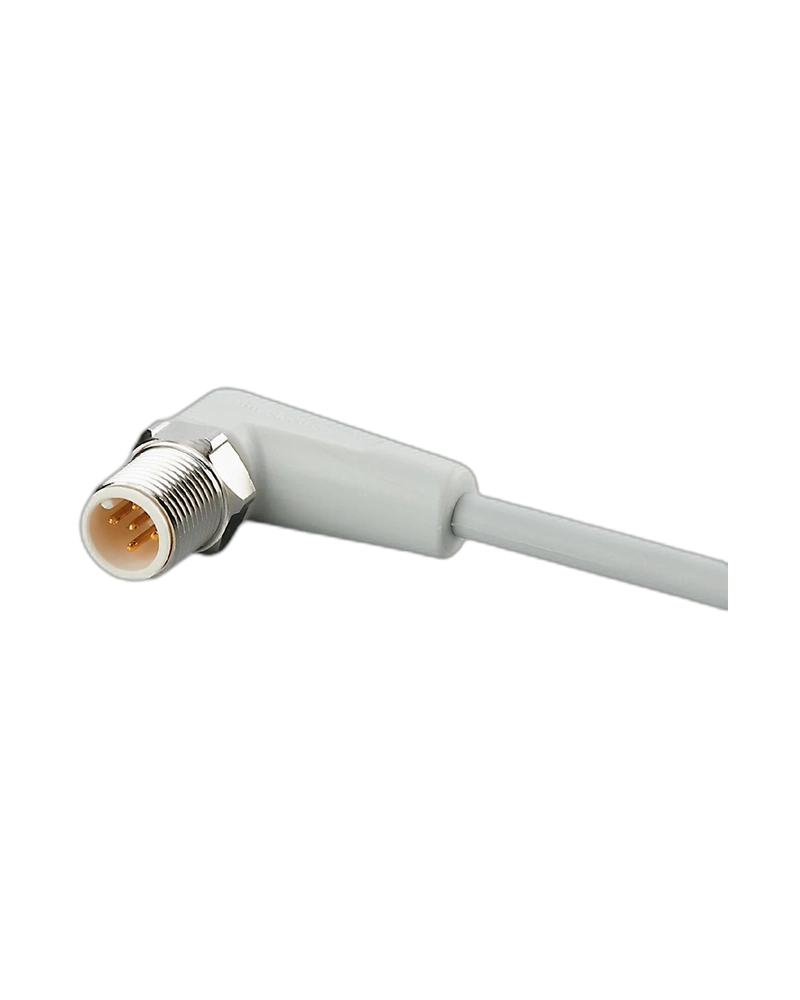

Angled M12 Plug
EVF725 features an angled A-coded M12 plug for convenient routing and reliable connection with compatible industrial equipment.
20 m Cable Length
The 20 m grey MPPE cable provides extended reach for large machinery and production installations.
Five-Core Electrical Design
The cable uses five 0.34 mm² conductors to provide reliable electrical connectivity for compatible industrial applications.
Hygienic Construction
The silicone-free and halogen-free cable sheath is designed for hygienic and wet areas in food-processing environments.
Vibration and Shock Resistance
The coupling ring with locking mechanism helps maintain a secure connection under vibration and shock conditions.
High Protection
IP65, IP67, IP68 and IP69K protection supports operation in demanding wet and washdown environments.
Provides an extended 20 m connection length.
Offers secure angled M12 A-coded connectivity.
Supports reliable five-core electrical connections.
Provides gold-plated contacts for dependable signal transmission.
Offers vibration and shock resistance.
Suitable for drag-chain applications.
Food-processing machinery
Packaging equipment
Industrial automation systems
Hygienic machinery
Sensor and actuator installations
Wet and washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF725 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAH050VAS0020P05 |
| Cable Length | 20 m |
| Connector | 1 x M12 Plug |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 5 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Housing Material | PP, Halogen-free |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
