IFM EVF724 is a 10 m connecting cable with an angled A-coded M12 plug designed for hygienic and wet food-industry applications. It features a five-core halogen-free MPPE cable, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

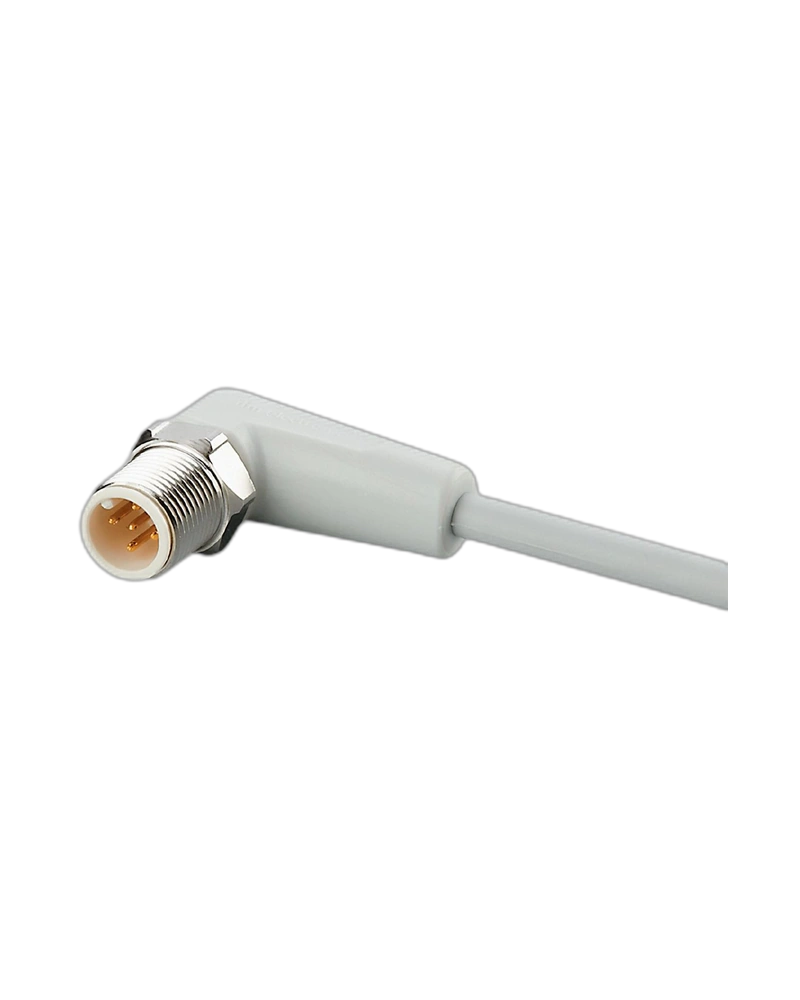

Angled M12 Plug
EVF724 features an angled A-coded M12 plug that provides convenient cable routing and reliable connection to compatible industrial devices.
10 m Cable Length
The 10 m grey MPPE cable provides extended installation flexibility between sensors and automation components.
Five-Core Electrical Design
Five 0.34 mm² conductors provide reliable electrical connectivity for compatible industrial automation applications.
Hygienic Construction
The silicone-free, halogen-free and flame-retardant cable construction is suitable for hygienic and wet food-industry environments.
Reliable Mechanical Protection
The stainless-steel locking mechanism and gold-plated contacts provide dependable connection performance.
High IP Protection
IP65, IP67, IP68 and IP69K protection supports reliable operation in wet and washdown conditions.
Provides a 10 m connection length for extended installations.
Offers reliable angled M12 A-coded connectivity.
Provides five-core electrical construction.
Features gold-plated contacts for reliable signal transmission.
Supports hygienic and wet food-industry applications.
Suitable for drag-chain applications.
Food-processing machinery
Packaging systems
Industrial automation equipment
Sensor installations
Hygienic production machinery
Wet and washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF724 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAH050VAS0010P05 |
| Cable Length | 10 m |
| Connector | 1 x M12 Plug |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 5 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Housing Material | PP, Halogen-free |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
