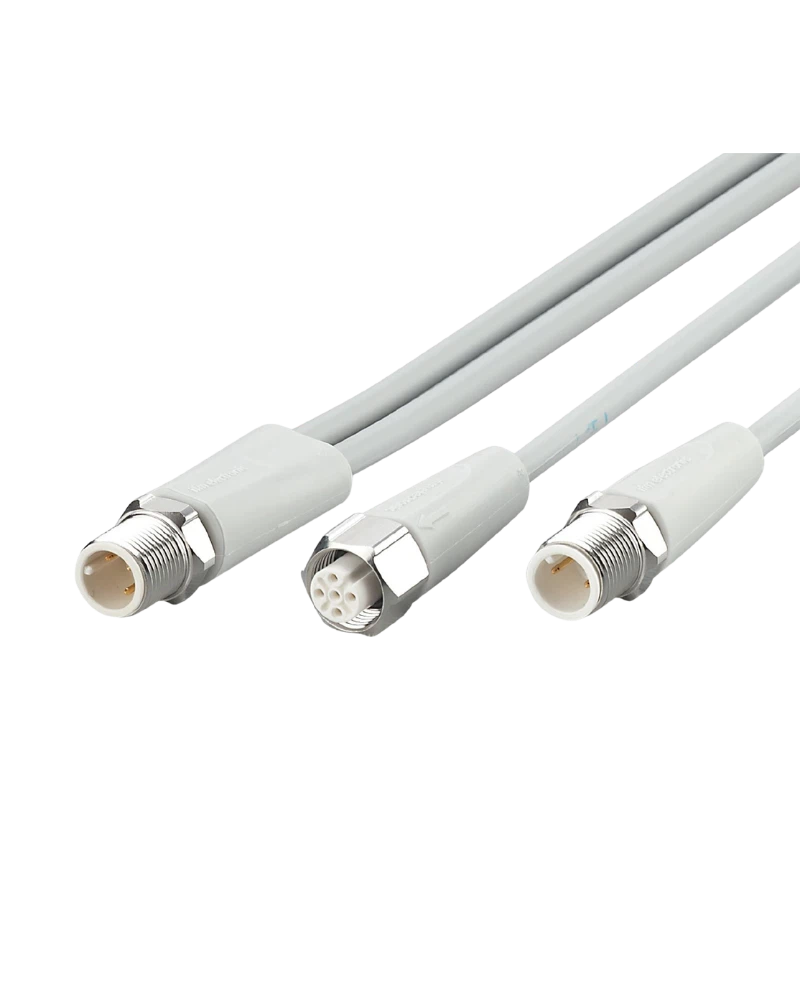

IFM EVF696 is a 10 m Y connection cable designed for hygienic and wet food-industry applications. It provides reliable M12 connectivity with A-coded connections, gold-plated contacts, EPDM sealing and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Design
EVF696 features a practical Y-split connection arrangement with M12 connections, allowing compatible industrial devices to be connected through a single cable assembly.
10 m Cable Length
The 10 m grey MPPE cable provides extended installation flexibility for automation and sensor applications.
A-Coded M12 Connections
The cable uses straight A-coded M12 connections with gold-plated contacts for dependable electrical connectivity.
Five-Core and Two-Core Connections
The Y connection includes a 5 x 0.34 mm² cable section and a 2 x 0.34 mm² cable section, supporting suitable sensor and automation connections.
Hygienic Construction
The halogen-free and silicone-free construction is suitable for hygienic and wet areas in the food industry.
Reliable Protection
EPDM sealing, stainless-steel locking components and IP65/IP67/IP68/IP69K protection provide reliable performance in demanding environments.
Provides a practical 10 m Y connection solution for industrial automation systems.
Supports reliable M12 A-coded connectivity with gold-plated contacts.
Offers high IP65, IP67, IP68 and IP69K protection.
Suitable for hygienic and wet food-industry environments.
Provides vibration and shock resistance for demanding applications.
Suitable for drag-chain applications.
Food-processing machinery
Packaging equipment
Industrial automation systems
Sensor and actuator connections
Hygienic production equipment
Wet and washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF696 |
| Product Type | Y Connection Cable |
| Order Code | YDSGHDA0VAS0010PDASTGH030VAS |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Main Conductors | 5 x 0.34 mm² |
| Branch Conductors | 2 x 0.34 mm² |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <24 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
