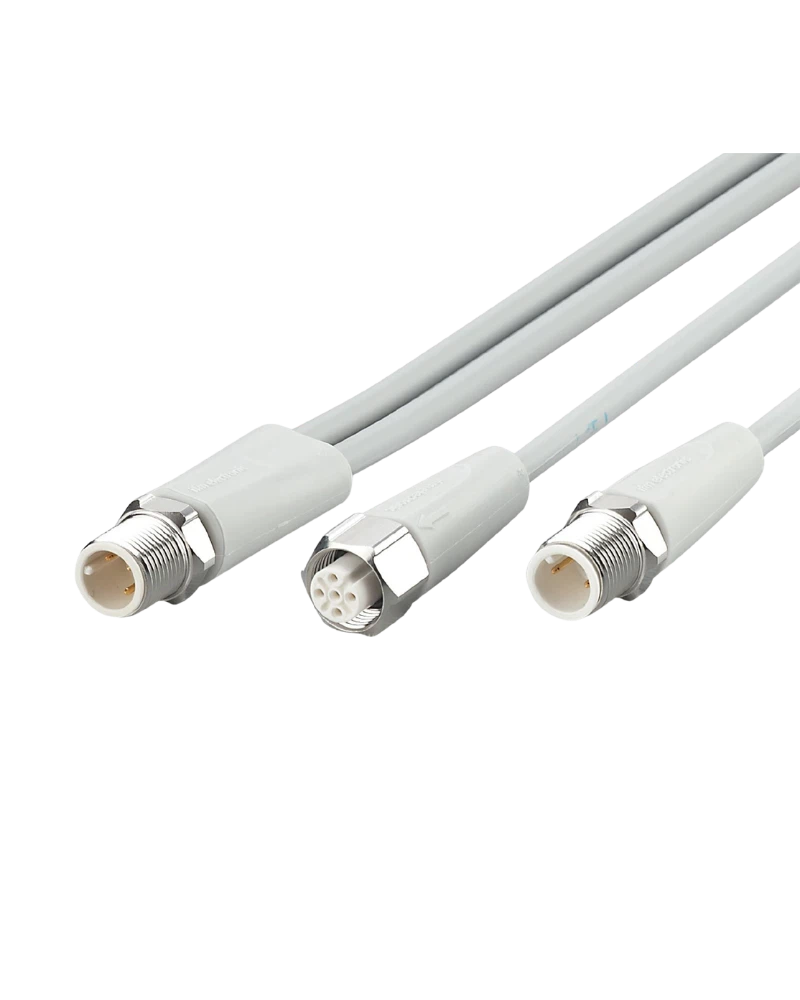

IFM EVF694 is a 2 m Y connection cable designed for reliable connections in hygienic and wet food-industry environments. It features straight A-coded M12 connections, a halogen-free MPPE cable, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Design
EVF694 provides a practical Y connection arrangement for connecting compatible industrial sensors, actuators and automation components.
2 m Cable Length
The 2 m grey MPPE cable offers additional routing flexibility for industrial automation and sensor installations.
A-Coded M12 Connection
Straight A-coded M12 connectors provide reliable connectivity for compatible sensor and actuator applications.
Five-Core Construction
The cable incorporates five 0.34 mm² conductors to provide reliable electrical connection between compatible devices.
Hygienic and Flame-Retardant Construction
The halogen-free and flame-retardant cable sheath is suitable for hygienic and wet areas, particularly food-processing environments.
Reliable Mechanical Protection
The coupling ring with locking mechanism provides resistance to vibration and shock. Gold-plated contacts, stainless-steel locking components and EPDM sealing support reliable operation.
EVF694 provides a 2 m Y connection solution with five-core construction, reliable A-coded M12 connections and gold-plated contacts. Its halogen-free design, high IP protection and vibration-resistant construction make it suitable for demanding industrial environments.
EVF694 is suitable for food-processing equipment, packaging machinery, hygienic automation systems, sensor and actuator connections, industrial control systems and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF694 |
| Product Type | Y Connection Cable |
| Order Code | YDSGHDA0VAS0002PDASTGH030VAS |
| Cable Length | 2 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 5 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Cable Sheath | Halogen-free / Flame-retardant |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Silicone Free | Yes |
| Shock Resistant | Yes |
| Vibration Resistant | Yes |
