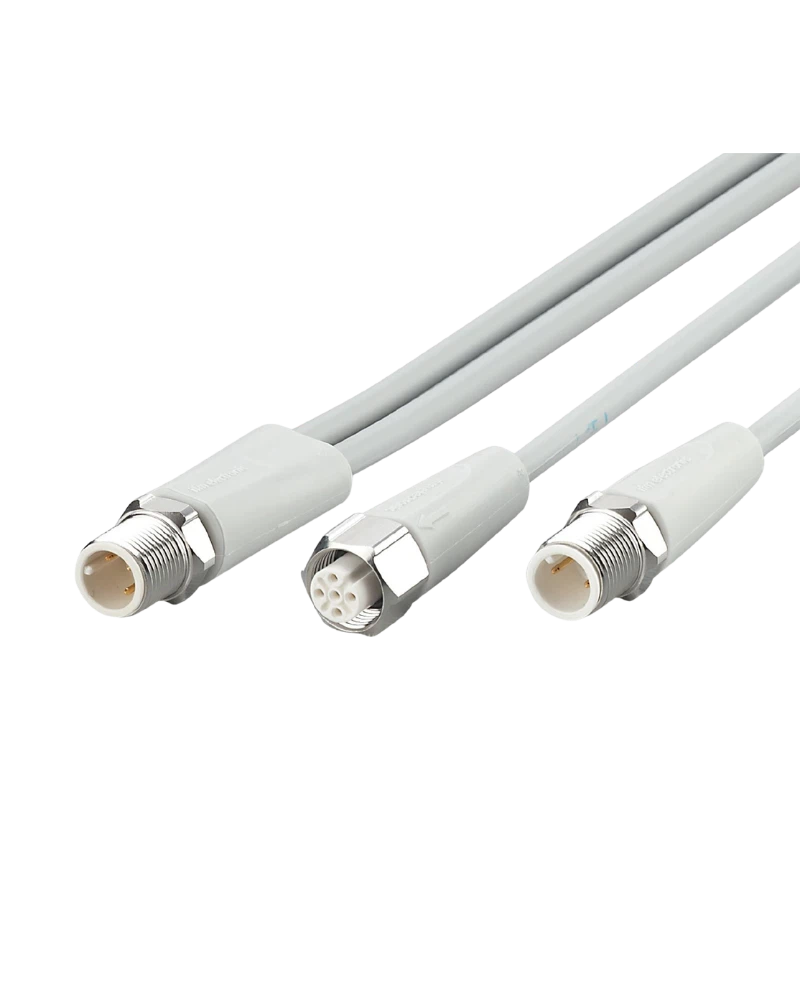

IFM EVF693 is a 1 m Y connection cable designed for hygienic and wet food-industry applications. It provides reliable M12 connectivity with gold-plated contacts, halogen-free construction, EPDM sealing and high IP protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Design
EVF693 is designed as an M12 Y connection cable, allowing compatible devices to be connected through a practical split connection arrangement.
1 m Cable Length
The 1 m grey MPPE cable provides a compact connection solution for industrial automation and sensor applications.
M12 A-Coded Connections
The cable features straight M12 connections with A coding for compatible sensor and actuator applications.
Five-Core Cable Construction
The cable uses five 0.34 mm² conductors to support reliable electrical connectivity between compatible devices.
Hygienic Construction
The halogen-free and flame-retardant cable sheath is designed for hygienic and wet areas in food-processing environments.
Reliable Sealing and Protection
Gold-plated contacts, stainless-steel locking components and EPDM sealing provide dependable connection performance. IP65, IP67, IP68 and IP69K protection supports demanding washdown conditions.
EVF693 provides a compact 1 m Y connection solution with reliable M12 A-coded connectivity, five-core construction and gold-plated contacts. Its halogen-free, hygienic design and high IP protection support demanding industrial applications.
EVF693 is suitable for food-processing machinery, hygienic automation systems, sensor and actuator connections, packaging equipment, industrial automation and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF693 |
| Product Type | Y Connection Cable |
| Order Code | YDSGHDA0VAS0001PDASTGH030VAS |
| Cable Length | 1 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 5 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Cable Sheath | Halogen-free / Flame-retardant |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Silicone Free | Yes |
| Shock Resistant | Yes |
| Vibration Resistant | Yes |
