IFM EVF692 is an 18 m Ethernet connection cable designed for Industrial Ethernet and PROFINET applications. It features angled D-coded M12 connectors, shielded PROFINET Type C construction and high IP protection for reliable communication in hygienic and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

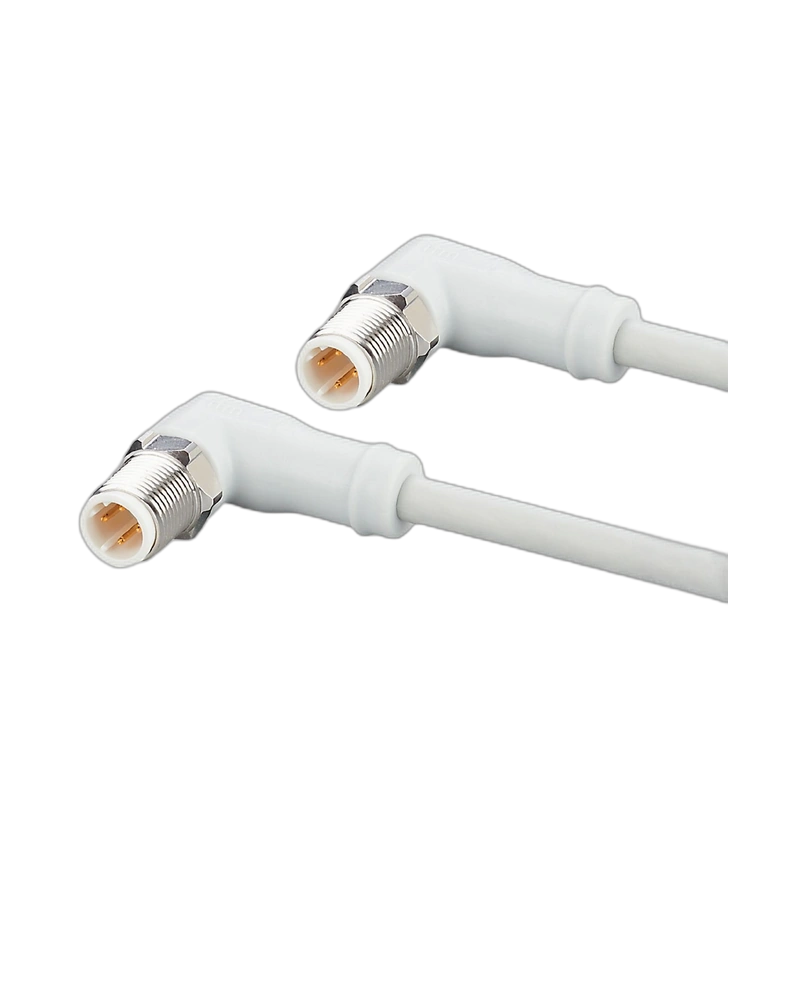

D-Coded M12 Connection
EVF692 features two angled D-coded M12 connectors that provide secure connectivity for Industrial Ethernet automation systems.
18 m Cable Length
The 18 m cable offers extended installation flexibility for large machines, production lines and industrial automation systems.
PROFINET Type C Construction
The cable uses four 0.34 mm² conductors and supports CAT5/CAT5e Industrial Ethernet communication up to 100 Mbit/s.
Shielded Cable Design
The screened cable helps reduce electromagnetic interference and supports reliable data transmission in industrial environments.
Hygienic Construction
The silicone-free and halogen-free design is suitable for hygienic and wet food-industry applications.
High Protection and Durability
Gold-plated contacts, stainless-steel locking components and IP65/IP67/IP68/IP69K protection provide dependable operation in demanding conditions.
EVF692 provides an extended 18 m Ethernet connection with shielded PROFINET Type C construction and robust D-coded M12 connectors. Its high IP protection, hygienic construction and drag-chain suitability make it suitable for demanding industrial communication systems.
EVF692 can be used in Industrial Ethernet networks, PROFINET systems, food-processing machinery, packaging equipment, industrial automation, hygienic production systems and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF692 |
| Product Type | Ethernet Connection Cable |
| Order Code | VSTAN040VAS0018R04STAN040VAS |
| Cable Length | 18 m |
| Connector | 2 x M12 |
| Connector Design | Angled |
| Coding | D-coded |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Data Rate | 100 Mbit/s |
| Cable Type | PROFINET Type C |
| Conductors | 4 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 6.5 mm |
| Contacts | Gold-plated |
| Shielding | Screened |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Operating Voltage | 30 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
