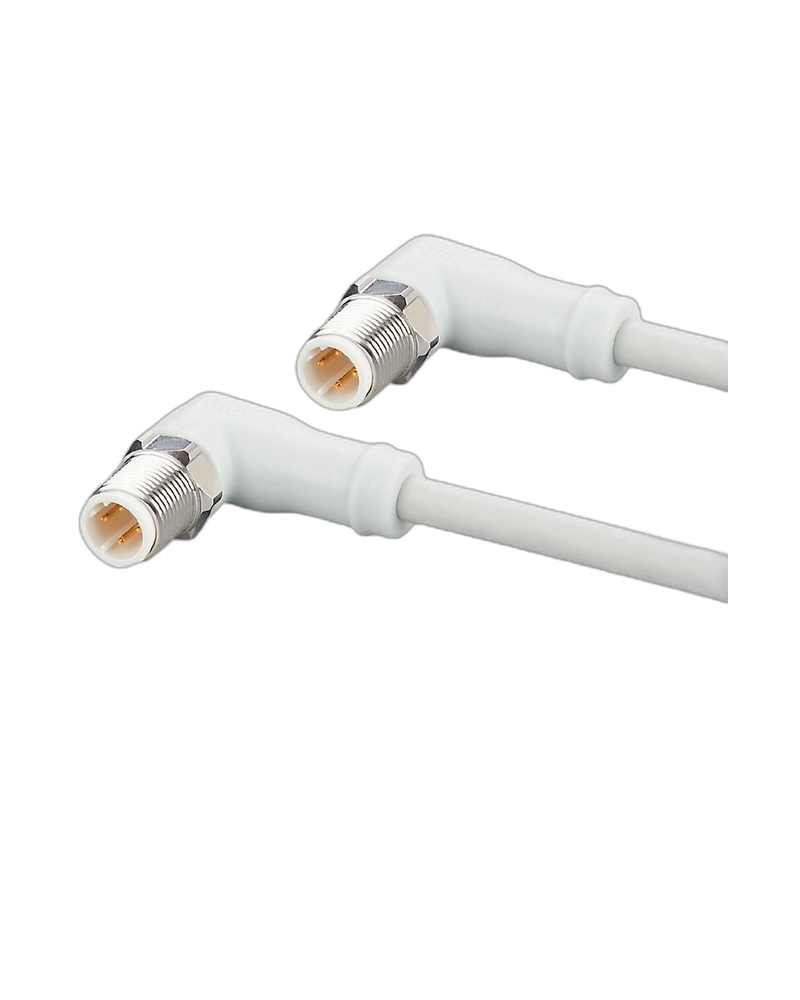

IFM EVF691 is a 17 m Ethernet connection cable with angled D-coded M12 connectors for Industrial Ethernet and PROFINET systems. Its shielded, halogen-free and silicone-free design provides reliable data transmission and high protection for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
D-Coded M12 Connection
EVF691 uses two angled D-coded M12 connectors for secure and dependable Industrial Ethernet connectivity.
17 m Cable Length
The 17 m cable provides extended connection distance for larger machines, production lines and industrial automation installations.
PROFINET Type C Design
The cable features PROFINET Type C construction with four 0.34 mm² conductors and supports CAT5/CAT5e Industrial Ethernet communication up to 100 Mbit/s.
Shielded Data Transmission
The screened cable provides good electromagnetic compatibility and helps maintain stable communication in industrial environments.
Flexible Industrial Design
EVF691 is suitable for drag-chain applications and is designed to withstand repeated bending and movement under specified operating conditions.
High IP Protection
IP65, IP67, IP68 and IP69K protection supports reliable operation in wet and washdown environments.
EVF691 delivers reliable 17 m Industrial Ethernet connectivity with shielded PROFINET Type C construction, gold-plated contacts and durable M12 connectors. Its high IP protection and drag-chain suitability make it suitable for demanding automation applications.
EVF691 is suitable for Industrial Ethernet networks, PROFINET systems, automated machinery, packaging lines, food-processing equipment, industrial communication and dynamic cable-chain installations.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF691 |
| Product Type | Ethernet Connection Cable |
| Order Code | VSTAN040VAS0017R04STAN040VAS |
| Cable Length | 17 m |
| Connector | 2 x M12 |
| Connector Design | Angled |
| Coding | D-coded |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Data Rate | 100 Mbit/s |
| Cable Type | PROFINET Type C |
| Conductors | 4 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 6.5 mm |
| Contacts | Gold-plated |
| Shielding | Screened |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Operating Voltage | 30 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
