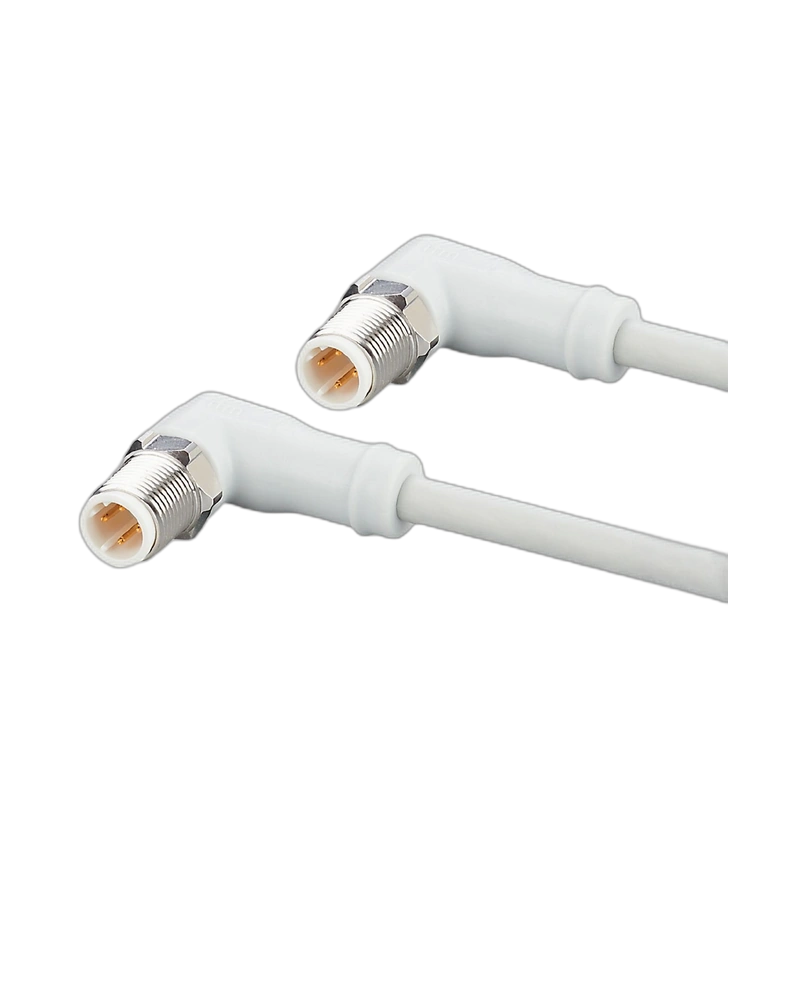

IFM EVF687 is a 13 m Ethernet connection cable with angled D-coded M12 connectors for Industrial Ethernet and PROFINET applications. It combines shielded data transmission, gold-plated contacts and high IP protection for reliable operation in hygienic and wet industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
D-Coded M12 Connection
EVF687 uses two angled D-coded M12 connectors to provide secure Industrial Ethernet connectivity between compatible automation components.
13 m Cable Length
The 13 m grey cable offers extended reach for industrial installations where Ethernet devices are positioned at greater distances.
Industrial Ethernet Communication
The cable is designed for CAT5/CAT5e Industrial Ethernet applications and supports data communication up to 100 Mbit/s.
Shielded Construction
The screened cable improves electromagnetic compatibility and helps protect data transmission against interference from surrounding industrial equipment.
Hygienic Construction
The silicone-free and halogen-free design makes EVF687 suitable for hygienic and wet areas in food-processing environments.
Reliable Protection
Gold-plated contacts, stainless-steel locking components and high IP protection provide dependable performance in demanding applications.
EVF687 offers reliable 13 m Industrial Ethernet connectivity with shielded construction, D-coded M12 connectors and gold-plated contacts. Its high IP protection, hygienic construction and drag-chain suitability make it suitable for demanding automation installations.
EVF687 can be used for Industrial Ethernet networks, PROFINET automation, food-processing machinery, packaging systems, hygienic production equipment, industrial communication and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF687 |
| Product Type | Ethernet Connection Cable |
| Order Code | VSTAN040VAS0013R04STAN040VAS |
| Cable Length | 13 m |
| Connector | 2 x M12 |
| Connector Design | Angled |
| Coding | D-coded |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Data Rate | 100 Mbit/s |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Cable Diameter | 6.5 mm |
| Conductors | 4 x 0.34 mm² |
| Cable Type | PROFINET Type C |
| Contacts | Gold-plated |
| Shielding | Screened |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Operating Voltage | 30 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
