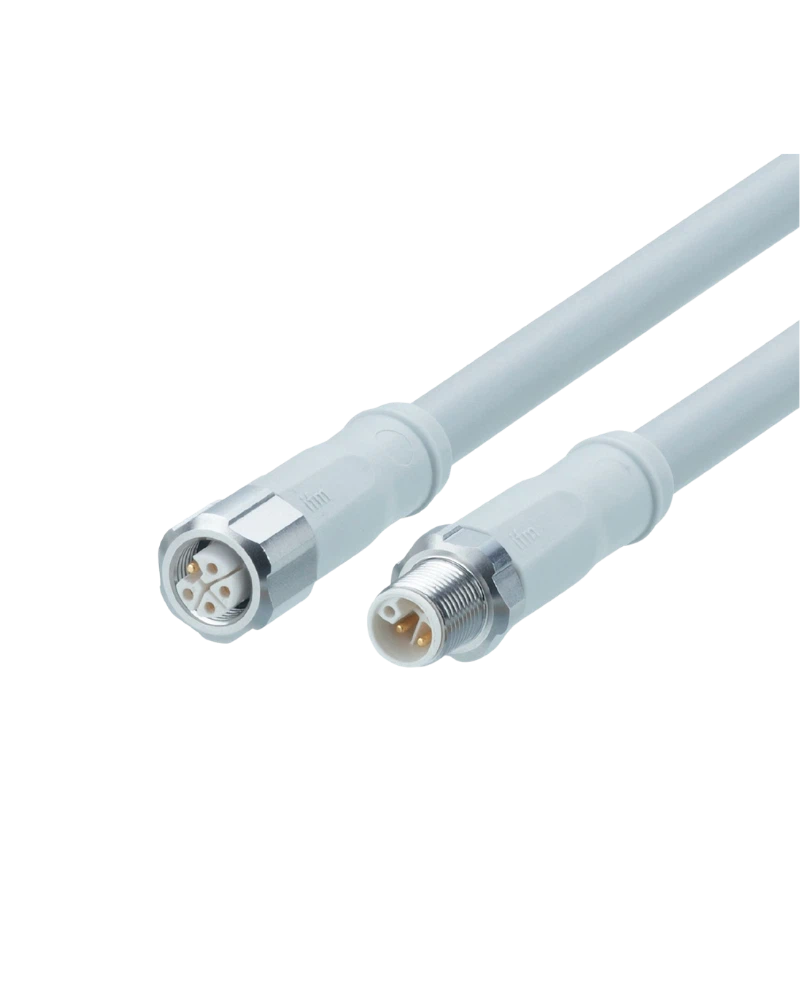

IFM EVF627 is a 20 m L-coded M12 connection cable for extended power connections in industrial automation. Its large 5 x 2.5 mm² conductors, 16 A current capability and robust sealing make it suitable for demanding wet and hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF627 is the 20 m variant of IFM's L-coded power connection cable range. It is designed for applications where field modules or automation equipment require a longer power connection without compromising mechanical and electrical reliability.
The cable features a large 5 x 2.5 mm² cross-section that helps reduce voltage drop and enables higher current transmission. Its L-coded M12 connection is designed for reliable power distribution.
The EVF627 is suitable for hygienic and wet areas, including food-processing environments. Gold-plated contacts, EPDM sealing and stainless-steel locking components support dependable long-term operation.
The cable is also designed for drag-chain applications, with a construction intended to tolerate repeated movement. Its locking mechanism provides resistance to vibration and shock, while the mechanical end stop helps protect the sealing system.
20 m Extended Length
Ideal for installations requiring long cable routing.
High Current Capacity
Supports applications requiring up to 16 A.
Reduced Voltage Drop
Large conductor cross-section improves power transmission.
Robust Environmental Protection
Suitable for demanding wet environments.
Drag-Chain Compatibility
Supports dynamic industrial cable routing.
Large automation machinery
Food-processing equipment
Packaging plants
Industrial field modules
Production lines
Machine-building systems
Hygienic manufacturing areas
| Specification | Details |
|---|---|
| Product Model | EVF627 |
| Order Code | VDOGE050VAS0020P05STGE050VAS |
| Cable Length | 20 m |
| Product Type | Connection Cable |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5 |
| Cable Cross-section | 5 x 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Class | III |
| Cable Material | MPPE |
| Sheath | Halogen-free, grey |
| Contact Material | Gold-plated |
| Locking Material | Stainless steel 316L |
| Sealing | EPDM |
| Drag Chain Suitable | Yes |
| Application | Wet and hygienic areas |
| Food Industry | Suitable |
