IFM EVF626 is a 10 m L-coded M12 connection cable designed for high-current industrial power transmission. Its robust 5 x 2.5 mm² cable construction, IP-rated protection and secure locking system provide dependable performance in wet and hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF626 provides a long-distance connection solution for industrial automation and field-module power applications. Its 10 m cable length offers installation flexibility for larger machines and distributed automation systems.

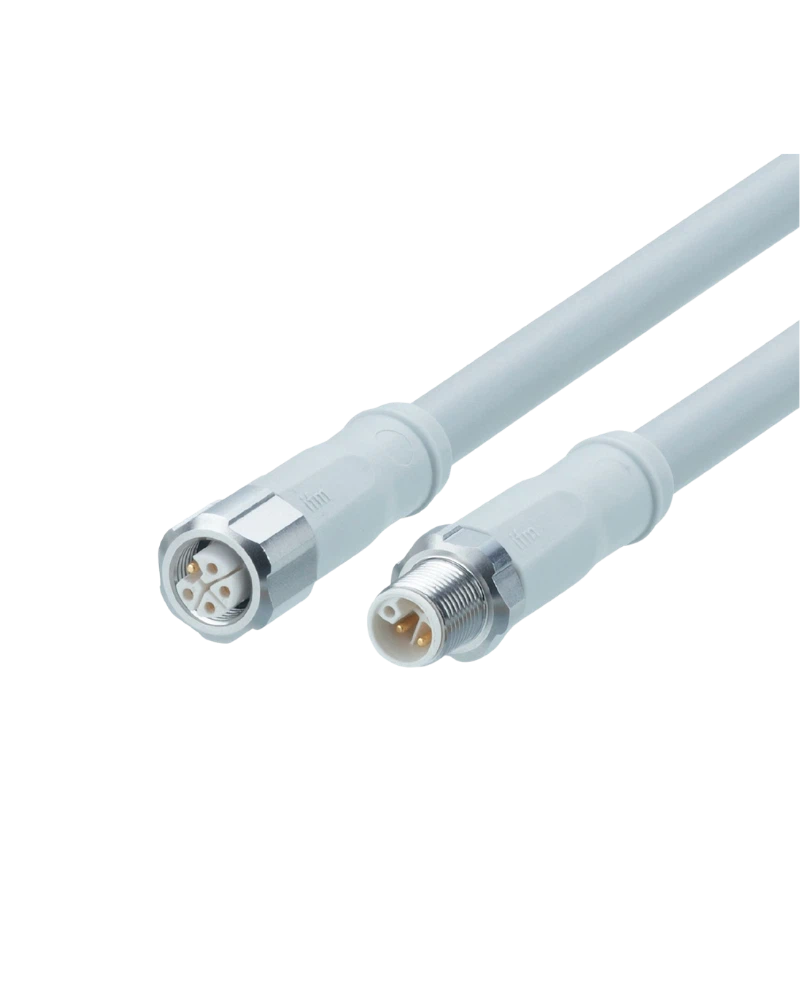

The cable incorporates an L-coded M12 connection with five gold-plated contacts and a large 5 x 2.5 mm² conductor cross-section. This construction helps reduce voltage drop while supporting higher current transmission.
The EVF626 is suitable for hygienic and wet areas in the food industry. EPDM sealing and stainless-steel locking components contribute to reliable protection and mechanical stability.
The cable is designed for demanding industrial environments and can be used in drag-chain applications. The coupling ring locking mechanism improves resistance to vibration and shock, while the mechanical end stop protects the O-ring during connection.
10 m Cable Reach
Supports flexible installation across larger machines.
High Current Capability
Designed for demanding power applications.
Robust Construction
Suitable for industrial operating conditions.
Secure Locking
Helps maintain connection integrity during vibration.
Hygienic Design
Suitable for wet and food-industry applications.
Industrial automation
Food and beverage machinery
Field-module power supply
Packaging systems
Production machinery
Automated material handling
Washdown environments
| Specification | Details |
|---|---|
| Product Model | EVF626 |
| Order Code | VDOGE050VAS0010P05STGE050VAS |
| Cable Length | 10 m |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | L-coded |
| Contacts | 5 |
| Cable Cross-section | 5 x 2.5 mm² |
| Cable Diameter | Approx. 10.1 mm |
| Cable Material | MPPE |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Class | III |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L |
| Sealing | EPDM |
| Drag Chain Suitable | Yes |
| Application | Wet and hygienic areas |
| Food Industry | Suitable |
| Silicone Free | Yes |
