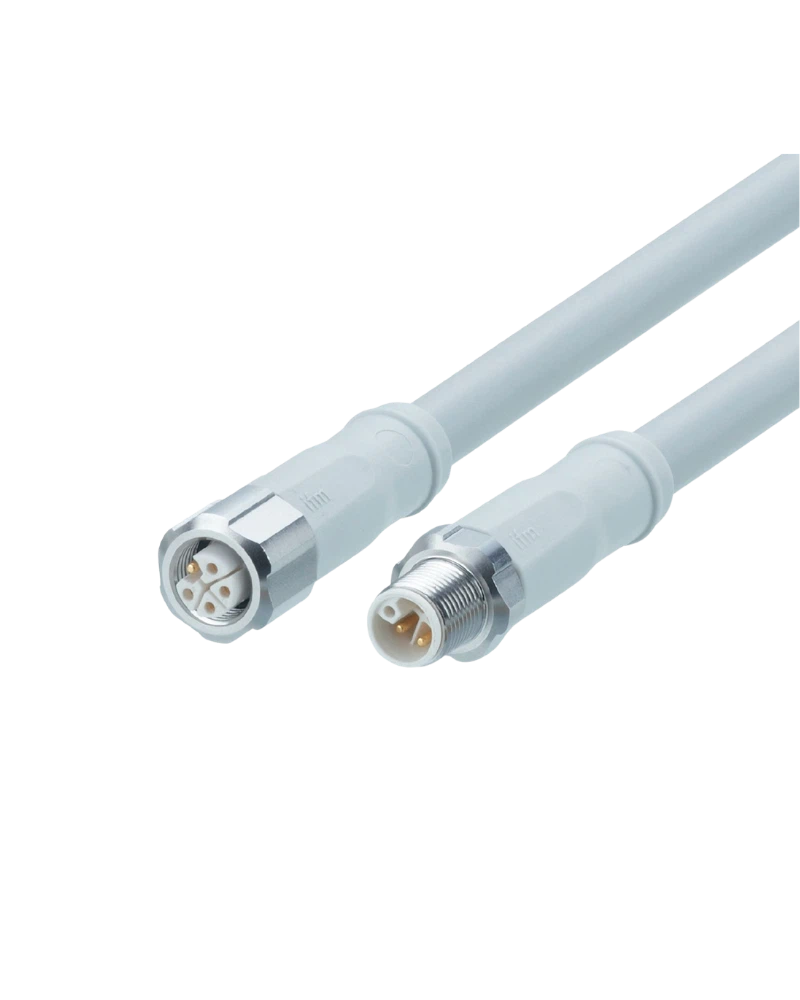

IFM EVF625 is a 5 m L-coded M12 connection cable for reliable industrial power transmission. The cable combines a large 5 x 2.5 mm² cross-section with robust sealing, vibration resistance and hygienic-area suitability for demanding automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF625 is a 5 m connection cable designed for power distribution within industrial automation systems. Its L-coded M12 configuration is particularly suited to field modules and applications requiring reliable power transmission.
The large 5 x 2.5 mm² cable cross-section helps reduce voltage drop and enables the cable to handle higher current loads. The 5 m length provides extended routing flexibility for machines and production systems.
The cable is designed for hygienic and wet areas, making it appropriate for food-processing and washdown environments. Its robust construction includes stainless-steel locking components and EPDM sealing.
The secure coupling design helps provide resistance to vibration and shock, while the mechanical end stop protects the sealing element during installation. The cable can also be used in drag-chain applications requiring repeated movement.
Extended 5 m Reach
Provides flexible connection between equipment located farther apart.
High Current Handling
Large conductors support power-intensive applications.
Reliable Sealing
EPDM sealing helps protect against moisture.
Industrial Durability
Designed to withstand vibration and shock.
Hygienic Application Support
Suitable for wet and food-industry environments.
Food-processing machinery
Packaging machines
Industrial field modules
Automation control systems
Machine tools
Production lines
Washdown areas
| Specification | Details |
|---|---|
| Product Model | EVF625 |
| Order Code | VDOGE050VAS0005P05STGE050VAS |
| Cable Length | 5 m |
| Product Type | Connection Cable |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5 |
| Cable Cross-section | 5 x 2.5 mm² |
| Cable Material | MPPE |
| Cable Sheath | Halogen-free, grey |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Class | III |
| Contacts | Gold-plated |
| Sealing | EPDM |
| Locking Material | Stainless steel 316L |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet areas |
| Food Industry | Suitable |
