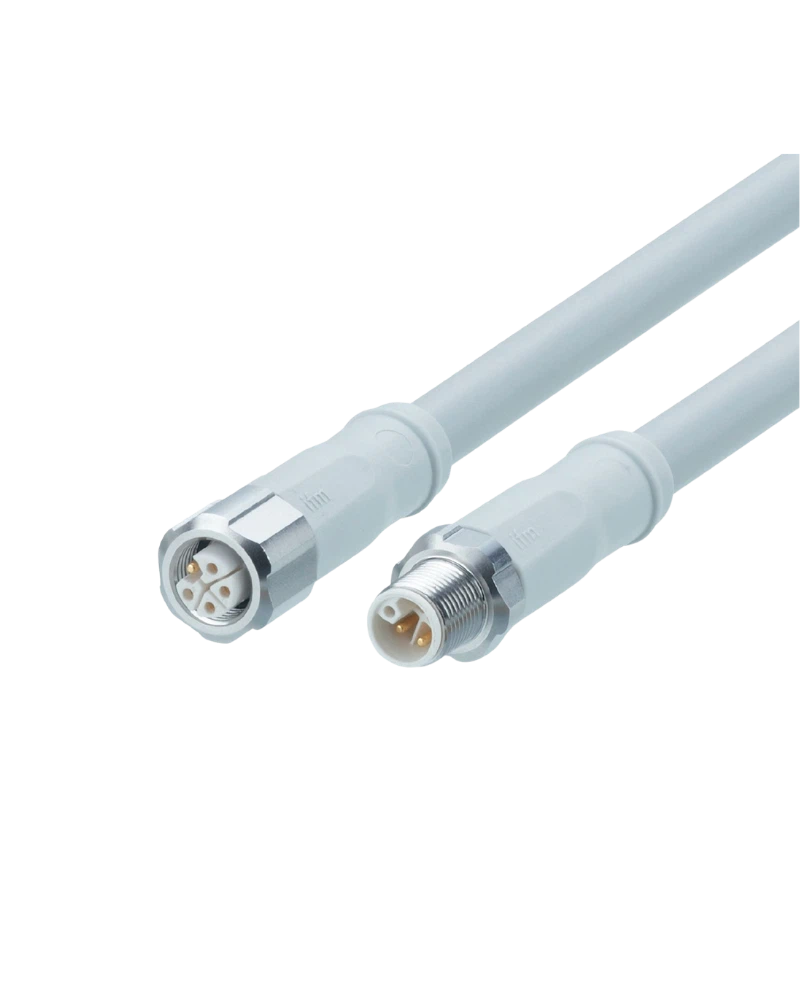

IFM EVF624 is a 2 m L-coded M12 connection cable engineered for dependable power transmission in automation systems. Its 5 x 2.5 mm² cable construction, robust locking mechanism and hygienic-area suitability make it ideal for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF624 connection cable provides a reliable connection solution for industrial power distribution and field-module applications. With its L-coded M12 interface and large conductor cross-section, it is designed to support higher current transmission while helping minimise voltage drop.
The 2 m cable length provides additional installation flexibility where field modules and automation components are positioned away from the main connection point.
The cable is designed for hygienic and wet areas in the food industry. Its robust construction incorporates EPDM sealing, stainless-steel locking components and gold-plated contacts for dependable electrical and mechanical performance.
A locking mechanism helps improve resistance to vibration and shock, while the mechanical end stop helps protect the O-ring during connection. The cable is also suitable for drag-chain applications where repeated movement is required.
Its halogen-free and silicone-free construction makes the EVF624 suitable for industrial installations where material compatibility and reliable environmental protection are important.
2 m Installation Length
Provides flexible routing between field devices and power connections.
High Current Transmission
Large conductors support demanding power applications.
Secure M12 Connection
L-coded interface supports reliable power connectivity.
Environmental Protection
Suitable for wet and hygienic environments.
Mechanical Stability
Locking mechanism helps resist vibration and shock.
Industrial automation
Food-processing equipment
Field-module power supply
Packaging machines
Automated production systems
Machine-building applications
Hygienic production areas
| Specification | Details |
|---|---|
| Product Model | EVF624 |
| Order Code | VDOGE050VAS0002P05STGE050VAS |
| Product Type | Connection Cable |
| Cable Length | 2 m |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5 |
| Cable Cross-section | 5 x 2.5 mm² |
| Cable Material | MPPE |
| Cable Sheath | Halogen-free, grey |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Class | III |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L |
| Sealing | EPDM |
| Drag Chain Suitable | Yes |
| Application | Wet and hygienic areas |
| Silicone Free | Yes |
| Food Industry Suitable | Yes |
