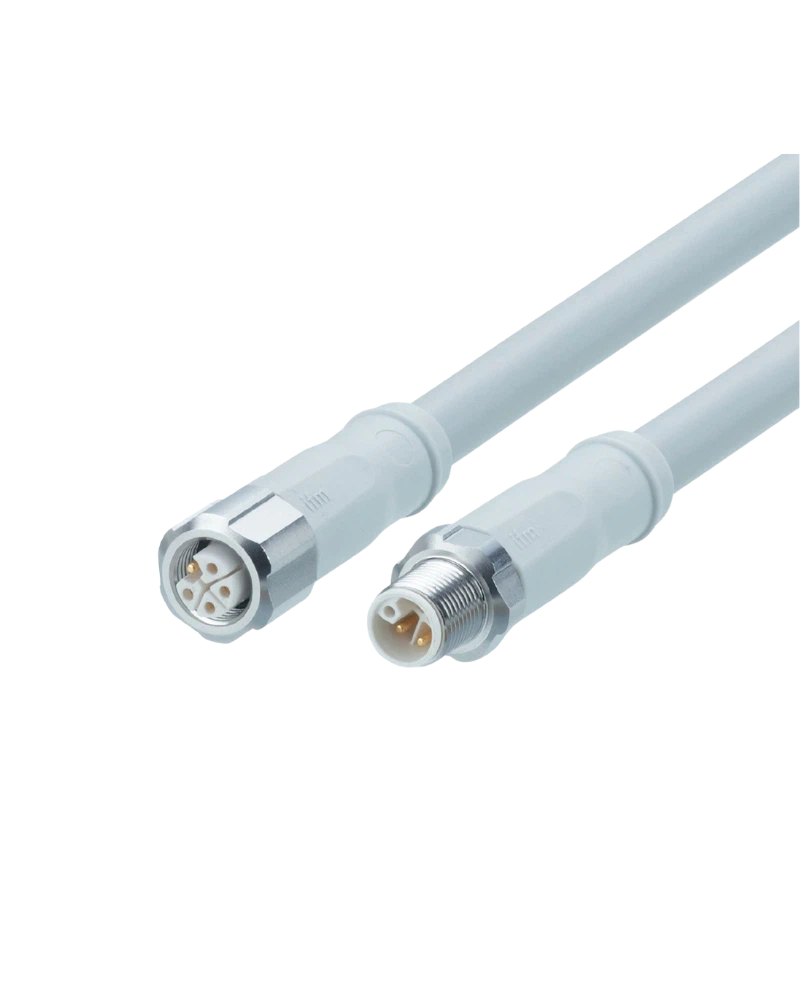

IFM EVF623 is a 1 m L-coded M12 connection cable designed for reliable power transmission in hygienic and wet industrial environments. Its robust construction, large 5 x 2.5 mm² cable cross-section and secure connection support demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF623 connection cable is designed for reliable power distribution in industrial automation and field-module applications. It features an L-coded M12 connection design intended for applications where higher current transmission and reduced voltage drop are important.
The cable uses a large 5 x 2.5 mm² conductor cross-section, helping support higher current loads while maintaining dependable electrical performance. The cable is suitable for hygienic and wet areas, including food-processing environments where reliable sealing and robust materials are important.
The EVF623 uses gold-plated contacts and stainless-steel locking components for dependable electrical and mechanical connections. Its EPDM sealing and IP-rated construction provide protection against moisture and environmental exposure.
The cable is also suitable for drag-chain applications. Its mechanical design supports repeated movement and vibration, making it suitable for automated machinery, field modules, industrial control systems and power distribution installations.
The coupling mechanism provides vibration and shock resistance, while the mechanical end stop helps protect the sealing system during connection. The cable is also free from silicone and halogen-free, making it suitable for applications with specific material requirements.
Reduced Voltage Drop
Large conductor cross-section supports efficient power transmission.
High Current Capability
Designed for applications requiring higher current transfer.
Reliable Sealing
EPDM sealing supports dependable protection in wet environments.
Vibration Resistant
Secure locking mechanism helps maintain connection stability.
Food Industry Suitable
Designed for hygienic and wet industrial environments.
Drag-Chain Compatible
Suitable for applications involving repeated cable movement.
Industrial automation systems
Field modules
IO-Link master power connections
Food-processing machinery
Packaging equipment
Automated production lines
Machine control systems
Wet and hygienic production areas
| Specification | Details |
|---|---|
| Product Model | EVF623 |
| Product Type | Connection Cable |
| Order Code | VDOGE050VAS0001P05STGE050VAS |
| Cable Length | 1 m |
| Cable Type | Power cable |
| Coding | L-coded |
| Connector | M12 |
| Number of Contacts | 5 |
| Cable Cross-section | 5 x 2.5 mm² |
| Cable Diameter | Approx. 10.1 mm |
| Cable Material | MPPE |
| Sheath | Halogen-free, grey |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Class | III |
| Connector Contacts | Gold-plated |
| Locking Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet areas |
| Food Industry | Suitable |
| Silicone Free | Yes |
