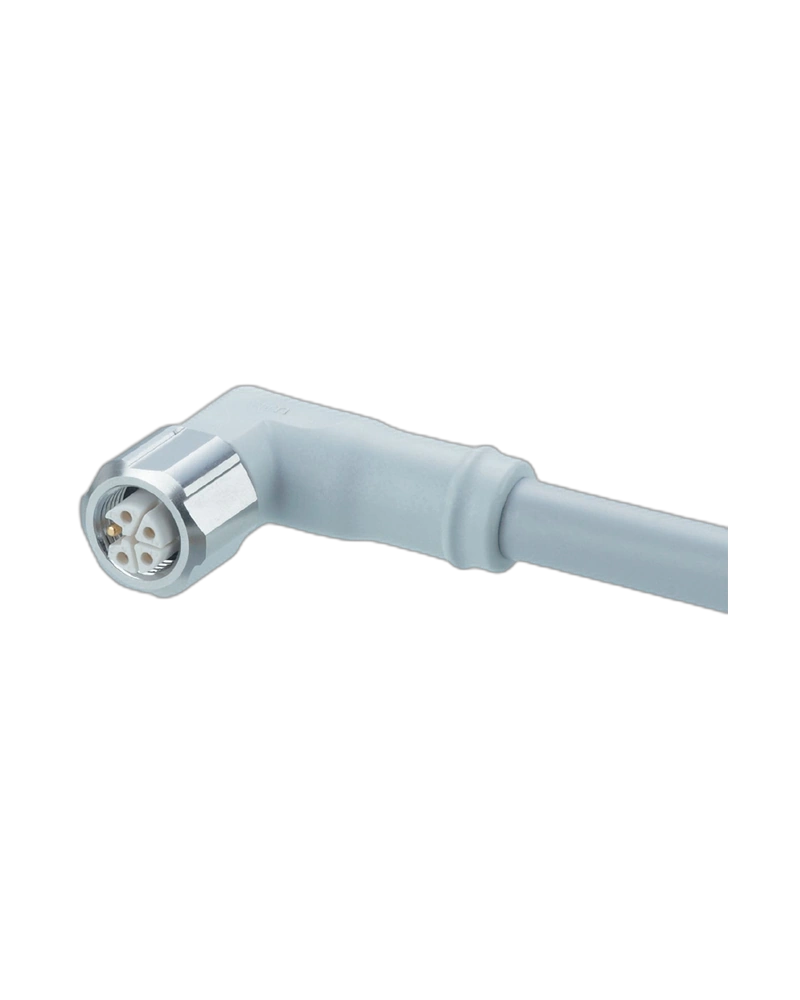

IFM EVF617 is a 5 m M12 connecting cable with angled socket designed for reliable industrial power and automation applications. It combines five 2.5 mm² conductors with an angled L-coded M12 socket and gold-plated contacts. The halogen-free MPPE cable and durable sealing provide dependable connectivity for suitable industrial and hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Practical Angled M12 Connection
EVF617 uses an angled M12 socket to support convenient cable routing around machinery and equipment. This design can be useful where straight cable routing is restricted by the machine layout.
5 m Cable Length
The 5 m length provides flexible routing between industrial field modules, power supply equipment and automation components.
High Current Transfer Capability
The five-core cable uses 2.5 mm² conductors, helping reduce voltage drop and supporting higher current transfer in compatible applications.
L-Coded M12 Socket
The L-coded M12 connection provides reliable connectivity for suitable industrial power applications and field modules.
Gold-Plated Contacts
The gold-plated contacts support dependable electrical connection and consistent performance during industrial operation.
Durable MPPE Construction
The halogen-free MPPE cable is designed for demanding industrial environments. Combined with robust locking and sealing, it supports dependable operation in suitable applications.
Suitable for Hygienic Industrial Areas
The cable is suitable for compatible food processing, wet-area and hygienic automation environments.
5 m cable length.
Five-core construction.
2.5 mm² conductors.
Angled L-coded M12 socket.
Gold-plated contacts.
Halogen-free MPPE cable.
Stainless-steel locking.
EPDM sealing.
Flexible cable routing.
High IP protection.
Suitable for hygienic applications.
Industrial automation
IO-Link master systems
Industrial field modules
Food processing equipment
Packaging machinery
Machine-building
Hygienic production systems
Industrial power supply
Factory automation
| SpecificationDetails | |
|---|---|
| Brand | IFM |
| Model | EVF617 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAE050VAS0005P05 |
| Cable Length | 5 m |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Conductors | 5 x 2.5 mm² |
| Connector | M12, angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Locking | Stainless steel 316L |
| Sealing | EPDM |
| Application | Industrial power supply |
