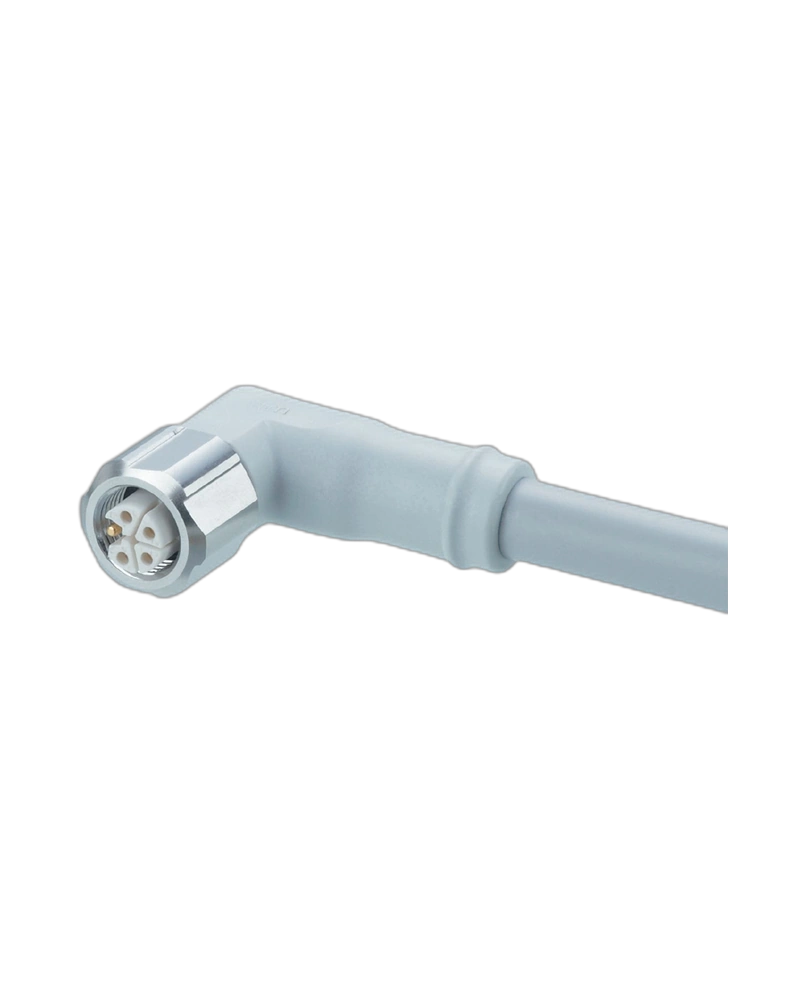

IFM EVF616 is a 2 m M12 connecting cable with angled socket designed for reliable industrial power and automation connections. It features five 2.5 mm² conductors, an angled L-coded M12 socket and gold-plated contacts. The halogen-free MPPE cable, stainless-steel locking and EPDM sealing support dependable operation in demanding and hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled Connection for Space-Limited Installations
EVF616 features an angled M12 socket that helps simplify cable routing where available installation space is restricted. The angled configuration can support cleaner routing around machinery and field modules.
2 m Cable Length
The 2 m cable provides a practical connection length for compact machines, automation panels and field equipment. It helps maintain neat cable routing without requiring excessive cable length.
Large 2.5 mm² Conductors
The five-core 2.5 mm² conductor configuration supports suitable industrial power applications. The larger conductor size helps reduce voltage drop and supports higher current transfer.
L-Coded M12 Power Connection
The L-coded M12 socket is designed for compatible power supply and automation applications. It provides a secure connection between suitable field components and industrial equipment.
Gold-Plated Contacts
Gold-plated contacts help maintain reliable electrical connectivity and consistent contact performance.
Durable Halogen-Free Construction
The MPPE cable provides robust industrial construction, while the sealing and locking components support reliable use in demanding environments.
Suitable for Hygienic Applications
EVF616 is suitable for compatible hygienic and wet-area installations, including food-industry machinery where appropriate.
2 m cable length.
Five-core configuration.
2.5 mm² conductors.
Angled L-coded M12 socket.
Gold-plated contacts.
Halogen-free MPPE cable.
Stainless-steel locking.
EPDM sealing.
Vibration and shock resistant.
High IP protection.
Suitable for hygienic environments.
IO-Link systems
Industrial field modules
Industrial automation
Food processing machinery
Packaging equipment
Hygienic automation
Machine-building
Production systems
Industrial power connections
| SpecificationDetails | |
|---|---|
| Brand | IFM |
| Model | EVF616 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAE050VAS0002P05 |
| Cable Length | 2 m |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Conductors | 5 x 2.5 mm² |
| Connector | M12, angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Locking | Stainless steel 316L |
| Sealing | EPDM |
| Application | Industrial power supply |
