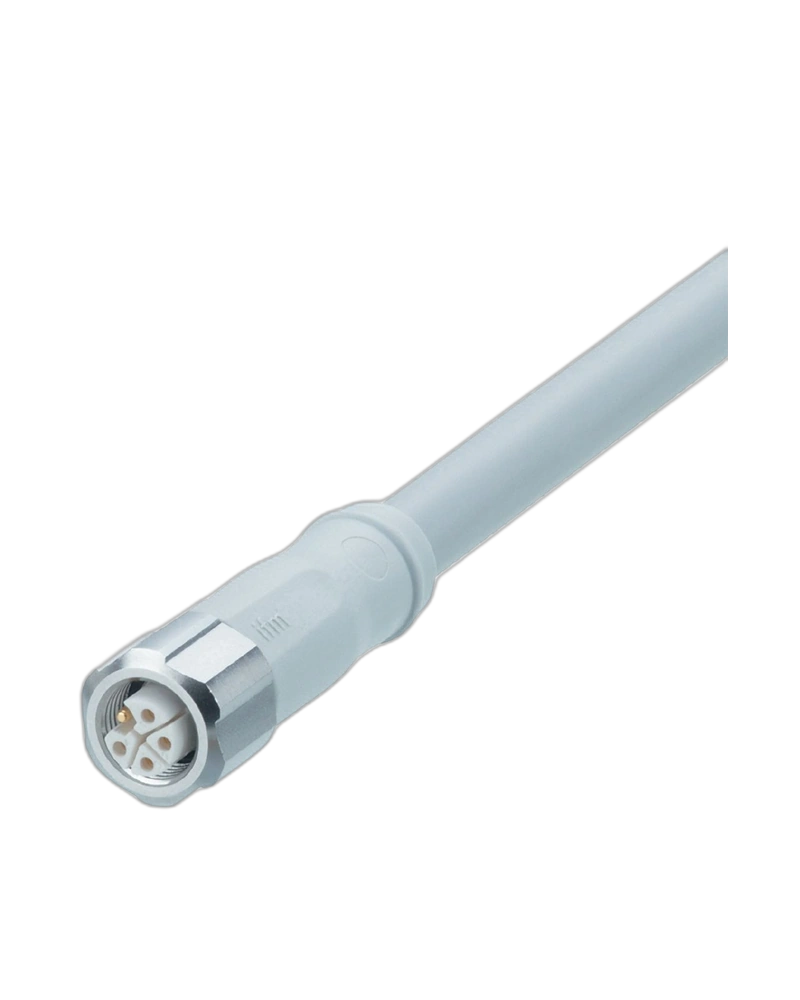

IFM EVF611 is a 2 m M12 connecting cable with socket designed for power and connection applications in demanding industrial environments. Its 2.5 mm² conductors support higher current transfer and help reduce voltage drop.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Power Connection
EVF611 is designed for dependable power and signal connections in industrial automation and field applications. Its robust construction supports reliable operation in demanding environments.
2 m Cable Length
The 2 m cable length provides convenient installation between compatible field modules and automation equipment. It supports flexible routing across compact machine layouts.
Large Cable Cross-Section
The large 2.5 mm² conductor cross-section helps reduce voltage drop and supports higher current transfer. This makes the cable suitable for compatible power distribution applications.
L-Coded M12 Socket
The L-coded M12 socket is designed for compatible power supply and field module applications. Its coding helps support suitable connection arrangements in industrial systems.
Durable Hygienic Construction
The halogen-free MPPE cable and robust connector construction support demanding industrial environments. The cable is suitable for hygienic and wet areas where durable connections are required.
2 m cable length
Five-core configuration
L-coded M12 socket
2.5 mm² conductors
Gold-plated contacts
Halogen-free MPPE cable
Stainless-steel locking
High IP protection
IO-Link master systems
Field modules
Industrial power supply
Food processing equipment
Automation systems
Hygienic machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVF611 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGE050VAS0002P05 |
| Cable Length | 2 m |
| Cable Material | MPPE |
| Cable Colour | Grey |
| Conductors | 5 x 2.5 mm² |
| Connector | M12, straight |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Locking | Stainless steel 316L |
| Sealing | EPDM |
| Application | Industrial power supply |
