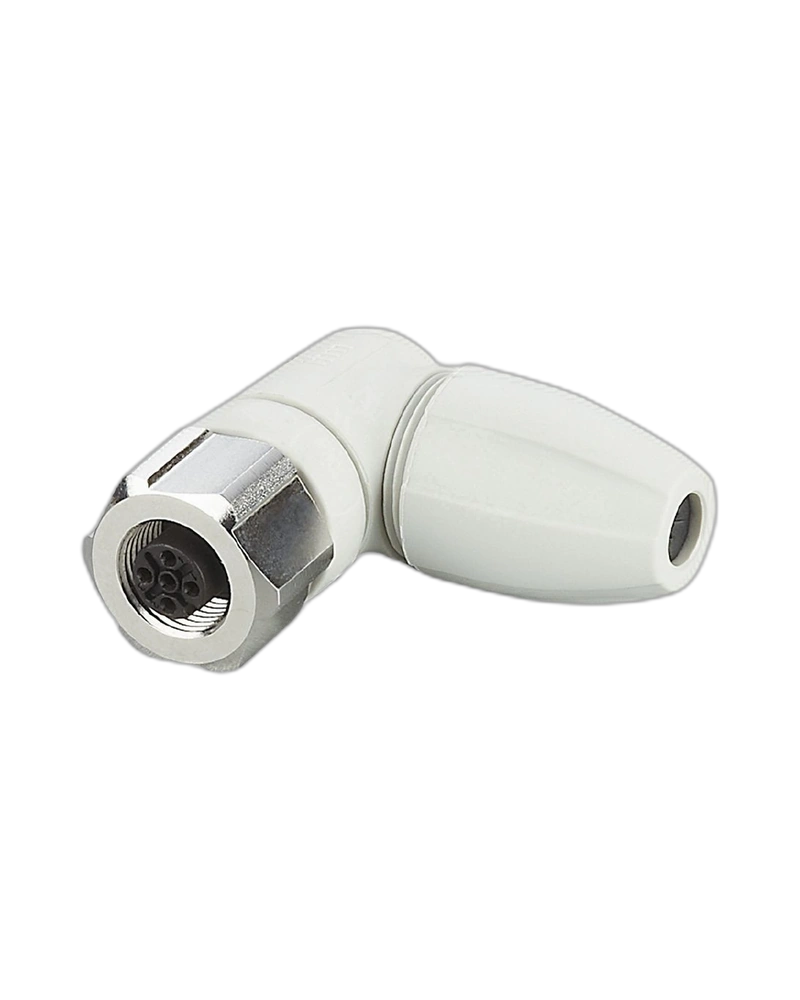

IFM EVF570 is a 5-pole angled M12 wirable socket designed for flexible industrial connections in compact and demanding installations. The angled design supports practical cable routing, while gold-plated contacts, screw terminals and high IP protection provide reliable performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
EVF570 uses an angled M12 socket that helps simplify cable routing around sensors and automation equipment, especially where installation space is restricted.
Five-Pole Configuration
The five-pole connection provides suitable connectivity for compatible industrial automation devices and sensor applications.
Field-Wiring Flexibility
The screw terminal connection allows suitable cables to be wired directly in the field, supporting flexible installation and maintenance.
Reliable Gold-Plated Contacts
Gold-plated contacts help support dependable electrical connectivity and consistent connection performance.
Suitable for Wet and Hygienic Areas
The silicone-free construction, stainless steel locking and EPDM sealing provide a robust solution for demanding industrial environments.
Five-pole M12 socket.
Angled connector design.
Gold-plated contacts.
Screw terminal connection.
Silicone-free construction.
Stainless steel locking.
EPDM sealing.
High IP protection.
Suitable for hygienic applications.
Food processing
Industrial sensors
Hygienic machinery
Packaging equipment
Automation systems
Machine-building
Wet industrial environments
| SpecificationDetails | |
|---|---|
| Brand | IFM |
| Model | EVF570 |
| Product Type | Wirable Socket |
| Order Code | SDOAH050VASFKPG |
| Connector | M12, angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Connection | Screw terminals |
| Wire Size | 0.25...1 mm² |
| Housing | PA 6.6 |
| Nut | Stainless steel 316L |
| Sealing | EPDM |
| Operating Voltage | < 60 V AC/DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Application | Hygienic and wet areas |
