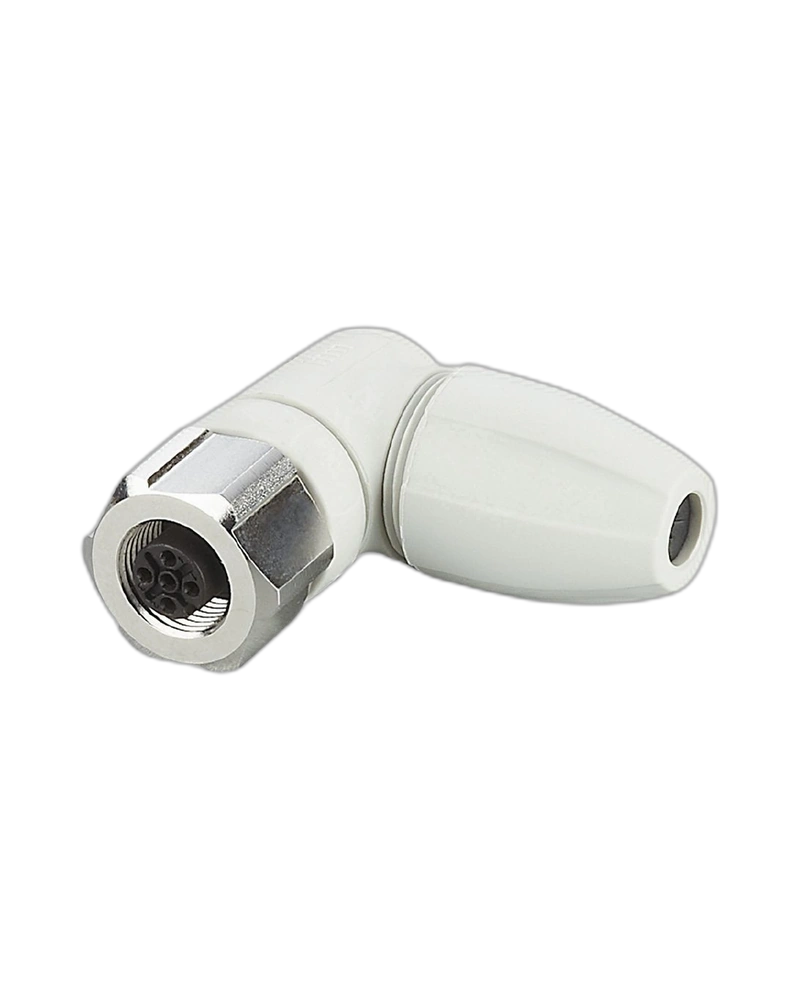

IFM EVF566 is a 4-pole angled M12 wirable socket designed for dependable industrial and hygienic connections. Its angled design supports convenient cable routing in compact installations, while screw terminals, gold-plated contacts and high IP protection provide reliable performance in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket Design
EVF566 features an angled M12 socket that supports convenient cable routing where installation space is limited or where cables need to be directed away from the connection point.
Four-Pole Connectivity
The four-pole configuration provides suitable connectivity for compatible industrial sensors and automation components.
Field Wiring with Screw Terminals
The screw terminal connection allows convenient field wiring and provides flexibility when installing or replacing compatible cables.
Gold-Plated Contacts
The gold-plated contacts are designed to support dependable electrical connections and consistent performance.
Suitable for Hygienic Applications
The silicone-free construction, EPDM sealing and high protection rating make the socket suitable for wet and hygienic industrial areas.
Four-pole M12 socket.
Angled connector design.
Gold-plated contacts.
Screw terminal connection.
Silicone-free construction.
Stainless steel locking.
EPDM sealing.
High IP protection.
Suitable for hygienic applications.
Food processing machinery
Industrial sensors
Hygienic automation
Packaging equipment
Machine-building
Wet industrial environments
Production equipment
| SpecificationDetails | |
|---|---|
| Brand | IFM |
| Model | EVF566 |
| Product Type | Wirable Socket |
| Order Code | SDOAH040VASFKPG |
| Connector | M12, angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Connection | Screw terminals |
| Wire Size | 0.25...1 mm² |
| Cable Sheath | Ø 3.5...6 mm |
| Housing | PA 6.6 |
| Nut | Stainless steel 316L |
| Sealing | EPDM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Application | Hygienic and wet areas |
