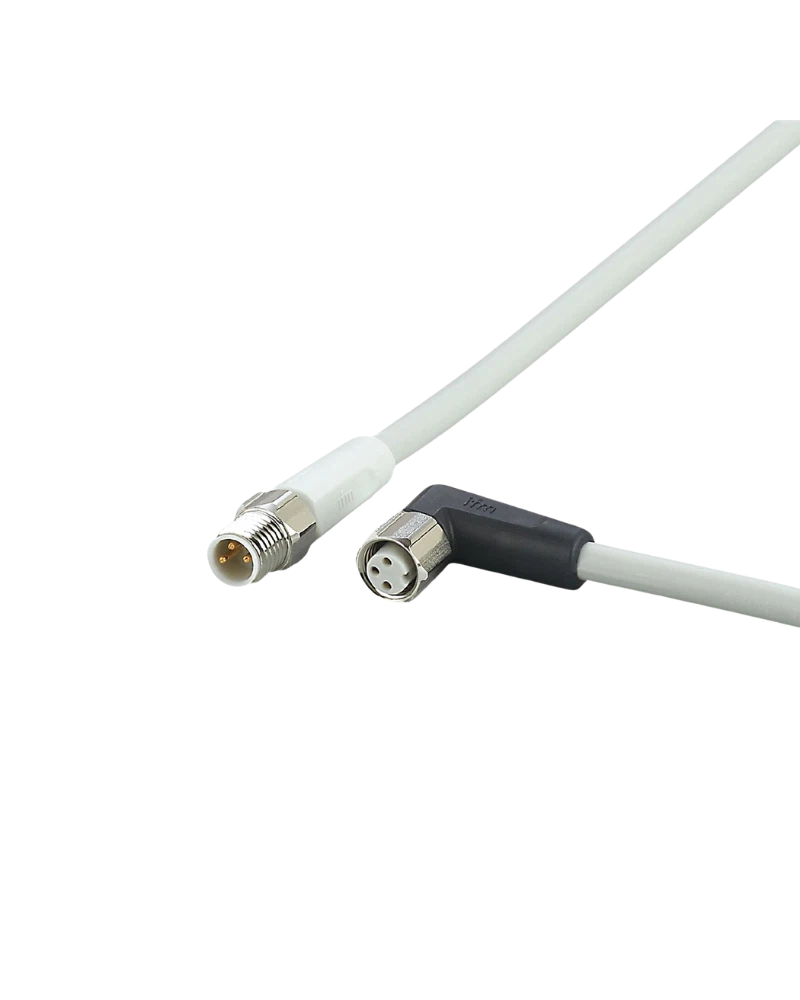

IFM EVF159 is a 10 m connection cable designed for extended automation installations. It combines gold-plated contacts, reliable EPDM sealing, secure locking and high protection for hygienic and wet food-industry environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF159 is an extended-length connection cable designed for industrial automation applications where greater cable routing distance is required. Its 10 m length provides flexibility across larger machinery and production systems.
EVF159 is designed for hygienic and wet areas in the food industry. Its reliable sealing system supports moisture protection, while the coupling ring and locking mechanism help provide resistance against vibration and shock.
The cable uses a 3 x 0.34 mm² MPPE construction, with gold-plated contacts and EPDM sealing. IFM specifies silicone-free and halogen-free construction, drag-chain suitability, IP65/IP67/IP68/IP69K protection and a 3 A maximum total current load.
10 m Extended Reach
Suitable for longer machine and production-line routing.
3-Core Construction
Designed for compatible industrial automation devices.
Gold-Plated Contacts
Supports reliable electrical connectivity.
High Environmental Protection
Suitable for wet and hygienic environments.
Drag-Chain Suitable
Supports dynamic cable applications.
Food-processing systems
Packaging machinery
Industrial automation
Production lines
Machine-building equipment
Sensor installations
Wet and hygienic environments
| Specification | Details |
|---|---|
| Product Model | EVF159 |
| Order Code | VDOAF032VAS0010P03STGF030VAS |
| Product Type | Connection Cable |
| Cable Length | 10 m |
| Cable Construction | 3-core |
| Cable Cross-section | 3 x 0.34 mm² |
| Cable Material | MPPE |
| Cable Diameter | Approx. 4.9 mm |
| Sheath | Grey, halogen-free |
| Contacts | Gold-plated |
| Sealing Material | EPDM |
| Locking Material | Stainless steel 316L |
| Operating Voltage | 10...36 V DC |
| Protection Class | III |
| Maximum Current Load | 3 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...80°C |
| Silicone Free | Yes |
| Halogen Free | Yes |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet food-industry areas |
