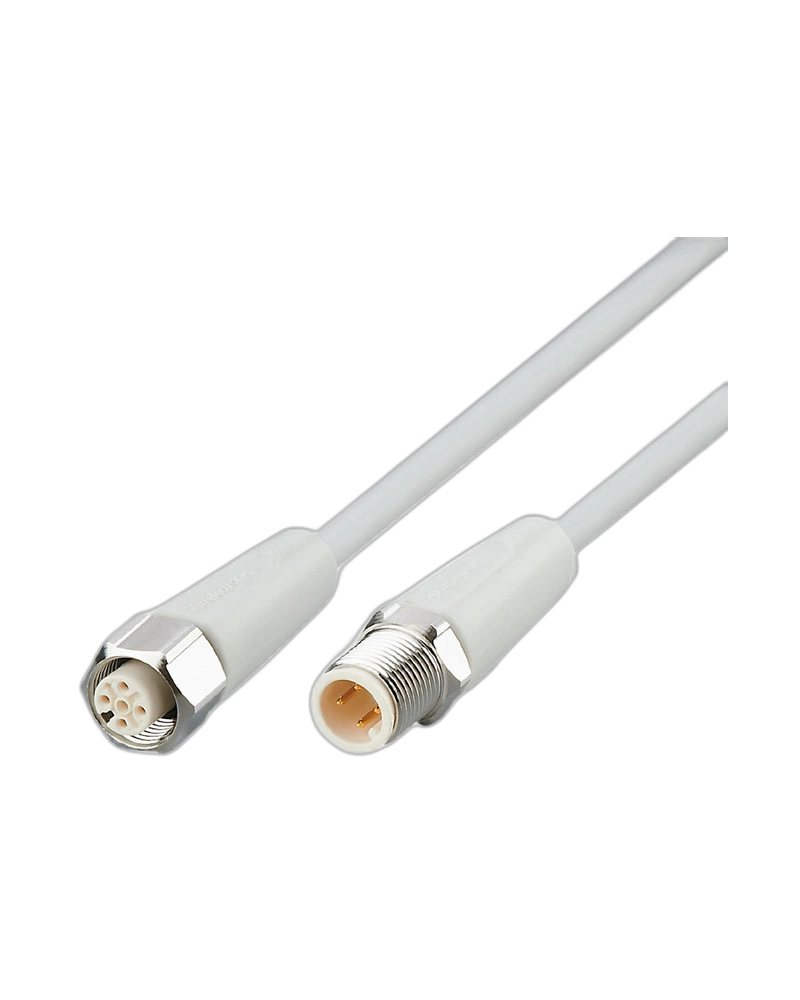

IFM EVF105 is a 3 m M12 connection cable designed for reliable industrial automation connectivity. It combines straight M12 connections, gold-plated contacts, halogen-free construction and IP65/IP67/IP68/IP69K protection for hygienic and wet applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF105 connection cable is designed for reliable connections between industrial sensors, actuators and automation equipment. With a 3 m cable length, it provides practical routing flexibility for machine installations.
The cable features M12 connections with gold-plated contacts and stainless-steel locking components. These features help provide stable electrical performance and secure mechanical connection.
The cable is manufactured using halogen-free MPPE material and includes EPDM sealing. It is designed for hygienic and wet areas in the food industry and provides a high level of environmental protection.
The EVF105 is suitable for drag-chain applications and supports repeated movement. Its construction is designed to withstand vibration and shock while maintaining connection integrity.
3 m Cable Length
Provides flexible routing for industrial machine installations.
Secure M12 Connections
Supports reliable device connectivity.
Halogen-Free Construction
Suitable for applications with specific material requirements.
High Protection Rating
Designed for wet and hygienic environments.
Dynamic Movement Support
Suitable for drag-chain applications.
Industrial automation
Sensor and actuator connections
Food-processing machinery
Packaging equipment
Machine tools
Conveyor systems
Automated production lines
| Specification | Details |
|---|---|
| Product Model | EVF105 |
| Order Code | VDOGH040VAS0003P04STGH040VAS |
| Product Type | Connection Cable |
| Cable Length | 3 m |
| Connector 1 | M12 plug |
| Connector 2 | M12 socket |
| Connector Design | Straight |
| Coding | A-coded |
| Contacts | 4 |
| Cable Cross-section | 4 x 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Material | MPPE |
| Sheath | Grey, halogen-free |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Sealing | EPDM |
| Locking Material | Stainless steel 316L |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet areas |
