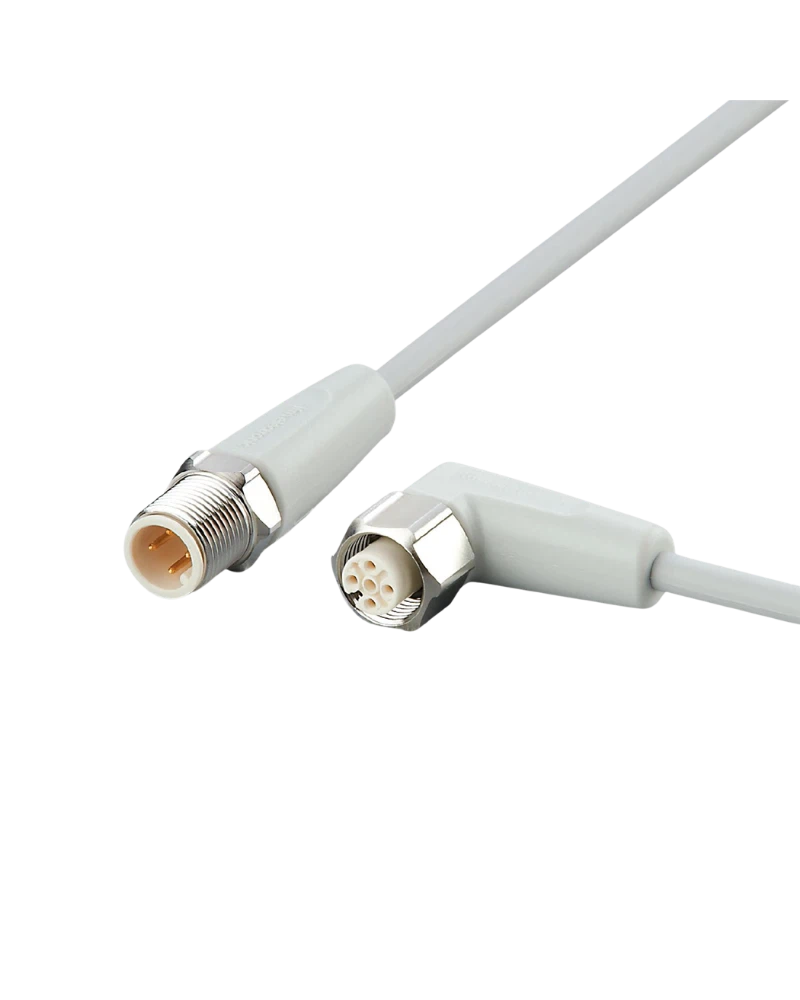

IFM EVF102 is a 1 m M12 patch connection cable with plug and socket, designed for reliable industrial automation connections. Its halogen-free construction, gold-plated contacts and IP-rated protection make it suitable for hygienic and wet environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF102 connection cable is designed to provide a dependable connection between M12-compatible industrial automation devices. It features an M12 plug and M12 socket configuration, making it suitable for extending or connecting sensors, field devices and automation components.
The cable uses a 1 m MPPE construction with five 0.34 mm² conductors. Gold-plated contacts support reliable electrical transmission, while the stainless-steel locking nuts provide secure mechanical connection.
The cable is free from silicone and designed for hygienic and wet areas in the food industry. Its EPDM sealing and IP65/IP67/IP68/IP69K protection provide protection against moisture and environmental exposure.
The EVF102 is also suitable for drag-chain applications, making it useful for machinery where cables experience repeated movement.
M12 Plug and Socket Design
Provides convenient device-to-device connectivity.
Compact 1 m Length
Ideal for short-distance industrial connections.
Gold-Plated Contacts
Supports reliable signal and power transmission.
Flexible Installation
Suitable for fixed and dynamic automation applications.
Hygienic Construction
Designed for wet and food-industry environments.
Industrial sensors
Automation equipment
IO-Link installations
Machine control systems
Packaging machinery
Food-processing equipment
Field-device connections
| Specification | Details |
|---|---|
| Product Model | EVF102 |
| Order Code | VDOAH050VAS0001P05STGH050VAS |
| Product Type | Connection Cable / Patchcord |
| Cable Length | 1 m |
| Connector 1 | M12 plug |
| Connector 2 | M12 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A-coded |
| Contacts | 5 |
| Cable Cross-section | 5 x 0.34 mm² |
| Cable Diameter | Approx. 5.1 mm |
| Cable Material | MPPE |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| cULus Current | 3 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Sealing | EPDM |
| Locking Material | Stainless steel 316L |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet areas |
