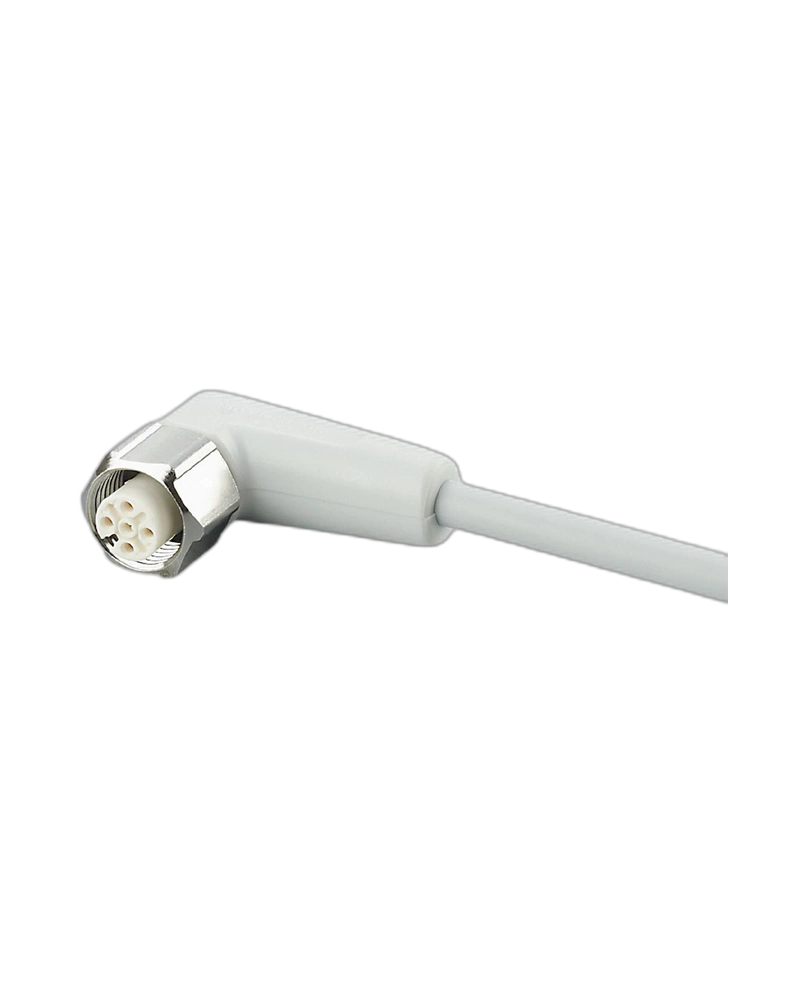

IFM EVF094 is a 15 m M12 connecting cable with angled socket for sensor and automation applications. It features gold-plated contacts, halogen-free construction, EPDM sealing and IP65/IP67/IP68/IP69K protection for hygienic and wet environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVF094 connecting cable with socket is designed for reliable sensor and automation connections in hygienic and wet industrial environments. Its 15 m cable length provides extended installation flexibility.
The cable features an angled M12 A-coded socket with gold-plated contacts. The stainless-steel 316L locking nut provides mechanical strength, while EPDM sealing helps protect the connection from moisture and environmental exposure.
The cable is manufactured using halogen-free MPPE material and is suitable for drag-chain applications. Its flexible construction supports repeated movement and is designed for more than one million bending cycles.
With IP65, IP67, IP68 and IP69K protection, the EVF094 is suitable for demanding environments where equipment may be exposed to water, cleaning processes and moisture.
15 m Cable Length
Provides extended reach for distributed sensor installations.
Angled M12 Socket
Helps simplify connections where installation space is limited.
Gold-Plated Contacts
Supports reliable electrical connectivity.
High Protection Rating
Suitable for wet and washdown environments.
Drag-Chain Suitable
Designed for applications involving repeated movement.
Food-processing machinery
Industrial sensors
Packaging equipment
Automation systems
Machine tools
Conveyor systems
Wet and washdown areas
| Specification | Details |
|---|---|
| Product Model | EVF094 |
| Order Code | ADOAH040VAS0015P04 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 15 m |
| Connector | M12 socket |
| Connector Type | Angled |
| Coding | A-coded |
| Contacts | 4 |
| Cable Cross-section | 4 x 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Material | MPPE |
| Cable Sheath | Grey, halogen-free |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Sealing | EPDM |
| Locking Nut | Stainless steel 316L |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Application | Hygienic and wet areas |
