IFM EVCA77 is a 15 m connecting cable with socket designed for reliable CAN bus communication in industrial automation applications. It features a shielded, halogen-free PUR cable, gold-plated contacts, and rugged M12 connectivity for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

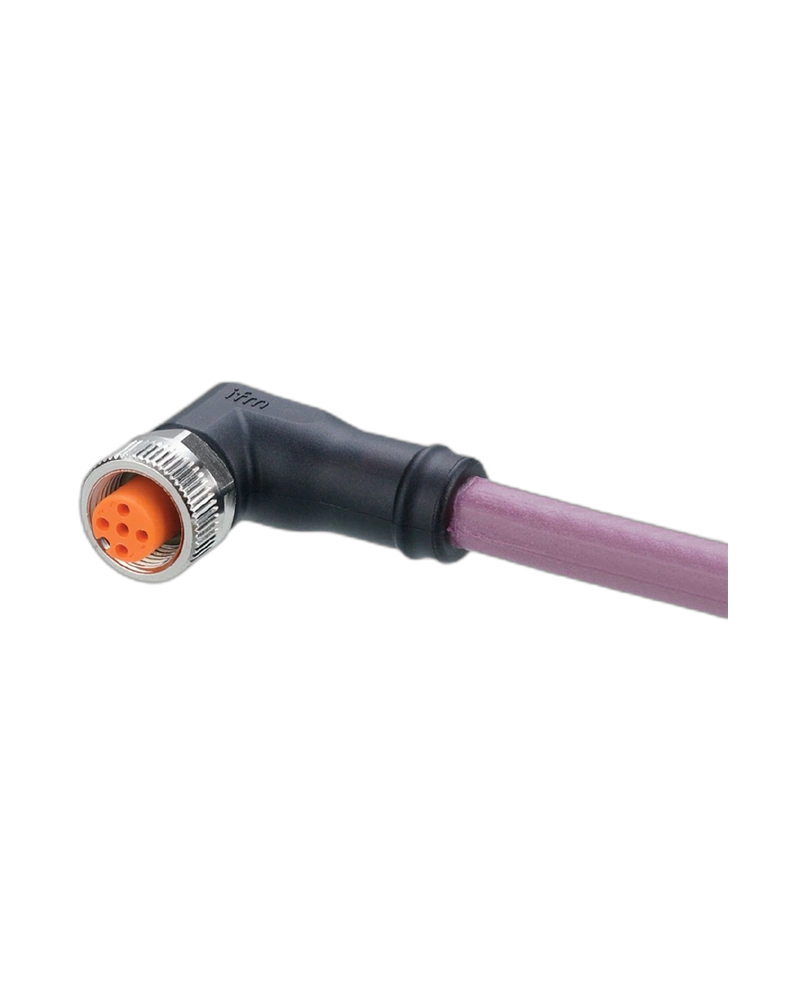

The IFM EVCA77 connecting cable with socket, model ADOAH050MSE0015C05, is a 15 m cable designed for CAN bus applications. Its shielded PUR construction provides reliable connectivity for industrial automation and mobile applications.
15 m PUR cable
Shielded and halogen-free construction
8.4 mm cable diameter
Angled M12 A-coded socket
5 gold-plated contacts
Integrated 120 Ω CAN bus terminating resistor
Oil and coolant resistant
IP67, IP68 and IP69K protection
Suitable for drag-chain applications
Vibration and shock resistant
The EVCA77 is suitable for CAN bus networks, industrial automation systems, and mobile applications. It can be used for connecting compatible controllers, sensors, actuators, and other CAN bus field devices.
The shielded PUR cable supports reliable communication while providing resistance to oils, coolants, vibration, and shock. The integrated 120 Ω terminating resistor helps reduce signal interference, while the robust M12 socket provides dependable connections in demanding environments.
The IFM EVCA77 combines a 15 m cable length, shielded PUR construction, gold-plated contacts, high IP protection, and integrated CAN bus termination. Its drag-chain suitability makes it a practical choice for industrial machinery and mobile automation applications.
| Parameter | Specification |
|---|---|
| Product Code | EVCA77 |
| Manufacturer | IFM electronic |
| Product Type | Connecting Cable with Socket |
| Model / Part Number | ADOAH050MSE0015C05 |
| Application | CAN bus |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Colour | Lilac |
| Cable Diameter | 8.4 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Conductor Configuration | Red / Black: 2 × 0.75 mm² + White / Blue: 2 × 0.5 mm² + Screen: 1 × 0.75 mm² |
| Connector | 1 × M12, angled |
| Connector Coding | A-coded |
| Number of Contacts | 5 |
| Contacts | Gold-plated |
| Connector Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Operating Voltage | 32 V DC |
| Maximum Total Current Load | 4 A |
| Wires 4 + 5 | 5 V / 0.05 A |
| Ambient Temperature | -25 °C to +80 °C |
| Protection Rating | IP67 / IP68 / IP69K |
| CAN Bus Terminating Resistor | 120 Ω, integrated |
| Drag-Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 1504 g |
| Dimensions | 38 × 15.5 × 31.5 mm |
| Pack Quantity | 1 pcs. |
