IFM EVCA58 is a 7.5 m shielded connection cable designed for reliable CAN bus connectivity in industrial automation systems. It features a halogen-free PUR cable, gold-plated contacts, and robust M12 connectors for dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

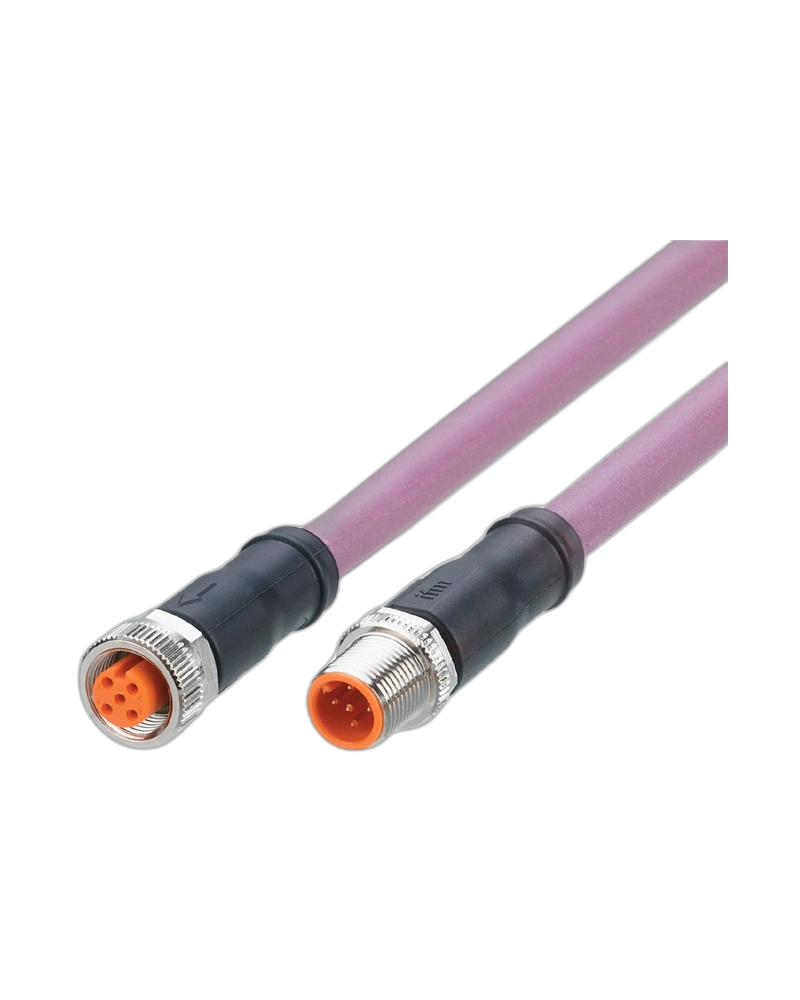

The IFM EVCA58 connection cable, model VDOGH050MSD07,5C05STGH050MSS, is a 7.5 m shielded cable designed for CAN bus applications. It provides reliable connectivity between compatible industrial devices and automation components.
7.5 m PUR cable
8.4 mm cable diameter
Shielded cable construction
Halogen-free design
Straight M12 A-coded connectors
Gold-plated contacts
Oil and coolant resistant
IP67, IP68 and IP69K protection
Suitable for cable-chain applications
Vibration and shock resistant
The EVCA58 is suitable for CAN bus networks and industrial automation systems. It can be used for connecting compatible sensors, actuators, controllers, and other field devices in machinery and factory automation installations.
The shielded PUR cable supports reliable signal transmission while providing resistance to oils, coolants, vibration, and mechanical stress. Its robust M12 connections and FKM sealing help maintain dependable operation in demanding industrial environments.
The IFM EVCA58 combines a 7.5 m cable length, rugged PUR construction, gold-plated contacts, and high ingress protection. Its cable-chain suitability and durable design make it a practical choice for industrial automation and CAN bus applications.
| Parameter | Specification |
|---|---|
| Product Code | EVCA58 |
| Manufacturer | IFM electronic |
| Product Type | Connection Cable |
| Model / Part Number | VDOGH050MSD07,5C05STGH050MSS |
| Application | CAN bus |
| Cable Length | 7.5 m |
| Cable Material | PUR |
| Cable Colour | Lilac |
| Cable Diameter | 8.4 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Connector | M12, straight |
| Connector Coding | A-coded |
| Contacts | Gold-plated |
| Connector Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Conductor Configuration | RD / BK: 2 × 0.75 mm² + WH / BU: 2 × 0.5 mm² + Screen: 1 × 0.75 mm² |
| Operating Voltage | < 30 V AC / < 36 V DC |
| Maximum Total Current Load | 4 A |
| Ambient Temperature | -25 °C to +80 °C |
| Storage Temperature | -25 °C to +55 °C |
| Protection Rating | IP67 / IP68 / IP69K |
| Cable-Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Stress | ±180°/m |
| Weight | Approx. 754.6 g |
| Pack Quantity | 1 pcs. |
| Tightening Torque | 0.6–1.5 Nm |
