IFM EVCA56 is a 3 m shielded connection cable designed for reliable CAN bus communication in industrial automation systems. It features a robust PUR cable, gold-plated contacts, M12 connectors, and IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction

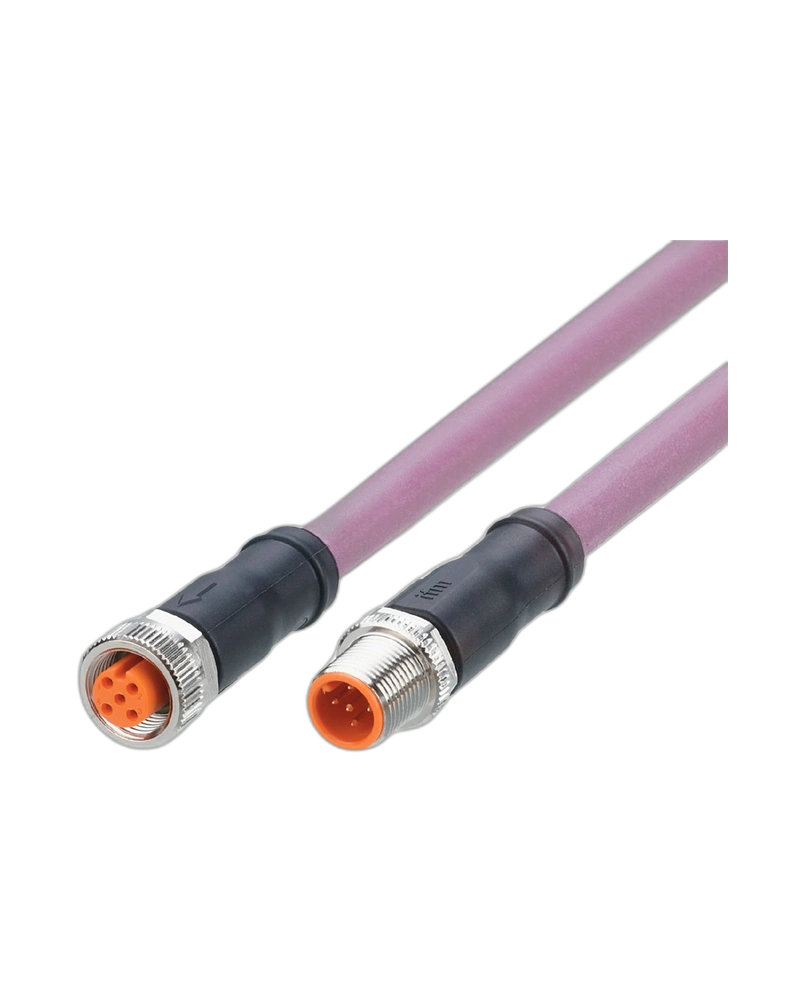

The IFM EVCA56 connection cable, model VDOGH050MSD0003C05STGH050MSS, is a robust industrial connection solution designed for CAN bus communication. With a 3 m shielded PUR cable and durable M12 connectors, it provides reliable connectivity between compatible sensors, controllers, actuators, and field devices in industrial automation systems.
Key Features
3 m shielded PUR cable
8.4 mm cable diameter
Halogen-free cable construction
M12 straight connectors with A coding
Gold-plated contacts
Oil and coolant resistant construction
IP67, IP68 and IP69K protection
Vibration and shock resistant design
Suitable for drag-chain applications
High mechanical durability
Reliable signal transmission
Operating temperature from -25 °C to +80 °C
Application
The EVCA56 is suitable for CAN bus communication and industrial automation applications. It can be used for connecting compatible sensors, actuators, controllers, machinery components, and field devices in factory automation and industrial control systems.
Application Performance
The shielded PUR cable provides dependable signal transmission while offering strong resistance to mechanical stress, oils, coolants, vibration, and harsh environmental conditions. The gold-plated contacts support reliable electrical connections, while the M12 connectors and high IP protection ratings provide secure operation in demanding industrial installations.
Why Choose
The IFM EVCA56 provides a combination of reliable CAN bus connectivity, durable PUR cable construction, high ingress protection, and industrial-grade connectors. Its rugged design makes it suitable for machinery, factory automation, control systems, and other demanding industrial applications.
| Parameter | Specification |
|---|---|
| Product Code | EVCA56 |
| Manufacturer | IFM electronic |
| Product Type | Connection Cable |
| Model / Part Number | VDOGH050MSD0003C05STGH050MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Diameter | 8.4 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Application | CAN bus |
| Connector | M12, straight |
| Connector Coding | A-coded |
| Contacts | Gold-plated |
| Protection Rating | IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +80 °C |
| Drag-Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Stress | ±180°/m |
| Weight | Approx. 330.05 g |
