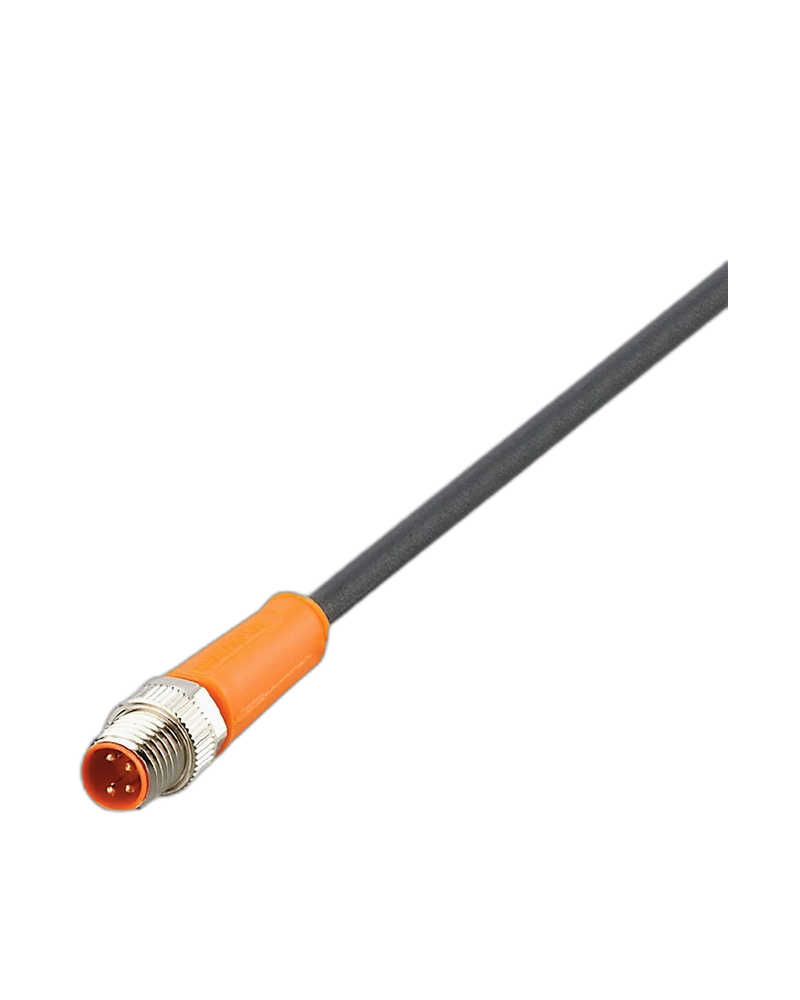

IFM EVC986 is a 6 m M8 connecting cable with straight A-coded plug. Its halogen-free PUR cable, gold-plated contacts and high IP protection make it suitable for reliable industrial sensor and automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M8 Plug Connection
EVC986 features a straight M8 connector with A coding, making it suitable for compatible industrial sensors, actuators and automation devices.
Durable Cable Construction
The cable is 6 m long and uses black halogen-free PUR material with a 3.7 mm diameter and 4 × 0.25 mm² conductors.
Industrial Environmental Performance
The cable is designed for industrial use with IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications and supports more than 5 million bending cycles.
6 m cable length
Straight M8 plug
A-coded connection
Gold-plated contacts
Halogen-free PUR cable
Suitable for drag-chain applications
High environmental protection
Reliable industrial connectivity
Industrial Sensors
Factory Automation
Machine Tools
Sensor/Actuator Connections
Industrial Control Systems
Automation Equipment
| Specification | Details |
|---|---|
| Product Model | EVC986 |
| Order Code | ASTGF040MSS0006H04 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 6 m |
| Connector | 1 × M8 |
| Connector Style | Straight |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 4 × 0.25 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Max. Current Load | 3 A |
| Ambient Temperature | -25 to +90 °C |
| cULus Temperature | Up to +85 °C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Max. Travel Speed | 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.3–0.5 Nm |
| Pack Quantity | 1 pc |
