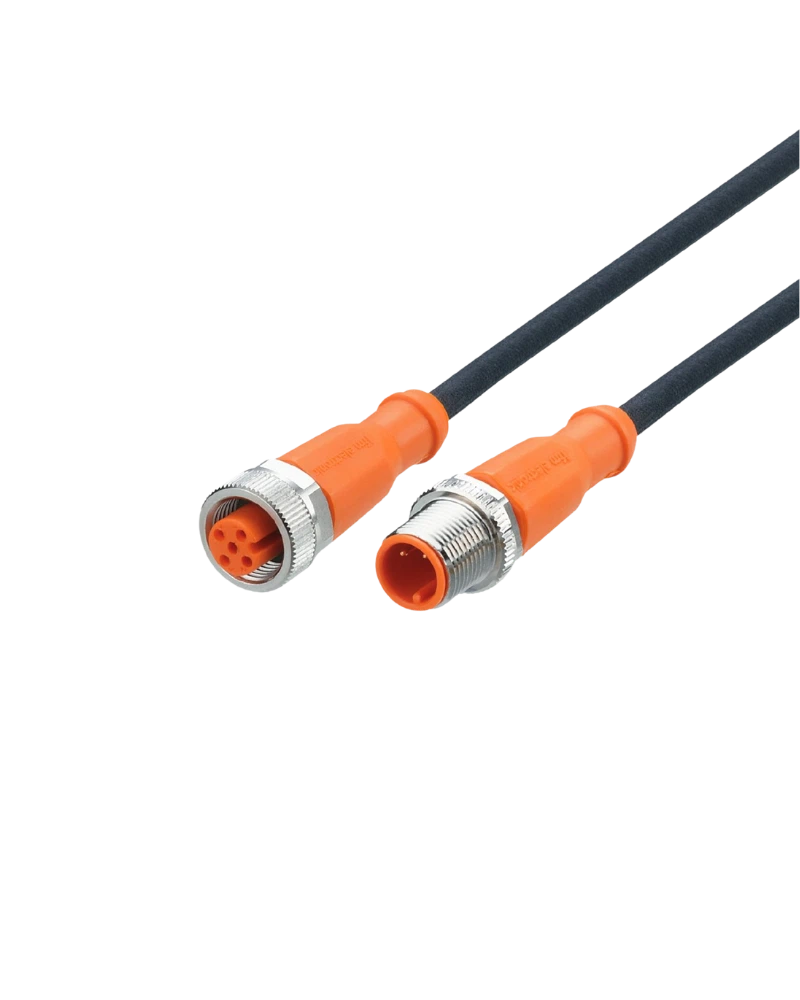

IFM EVC969 is a 5 m, 2-conductor M12 connection cable designed for industrial applications. Its PUR cable, gold-plated contacts and IP65/IP67/IP68/IP69K protection provide reliable connectivity in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connection
EVC969 is a 5 m connection cable designed for reliable electrical connections between compatible industrial devices. It uses M12 connector and socket interfaces with A-coded connections.
Robust Cable Construction
The cable uses halogen-free PUR material and has a 4.9 mm diameter with 2 × 0.34 mm² conductors. The construction is suitable for industrial applications requiring flexibility and durability.
Environmental Protection
EVC969 provides IP65, IP67, IP68 and IP69K protection and operates from -25 to +90 °C, making it suitable for demanding industrial environments.
5 m cable length
2-conductor configuration
Robust PUR cable
Gold-plated contacts
High IP protection
Oil and coolant resistant construction
Suitable for cable-chain applications
Reliable M12 connection
Industrial Automation
Sensors and Actuators
Machine Tools
Factory Automation
Control Systems
Industrial Machinery
| Specification | Details |
|---|---|
| Product Model | EVC969 |
| Order Code | VDOGH020MSS0005H02STGH020MSS |
| Product Type | Connection Cable |
| Cable Length | 5 m |
| Number of Conductors | 2 |
| Conductor Size | 2 × 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Cable Type | Halogen-free |
| Operating Voltage | <250 V AC / <300 V DC |
| Protection Class | II |
| Max. Current Load | 4 A |
| Ambient Temperature | -25 to +90 °C |
| Storage Temperature | -25 to +55 °C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Connector | M12 straight |
| Connector Coding | A-coded |
| Connector Configuration | M12 Connector / M12 Socket |
| Contacts | Gold-plated |
| Nut Material | Nickel-plated brass |
| Housing Material | TPU |
| Seal Material | FKM |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Max. Travel Speed | 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
