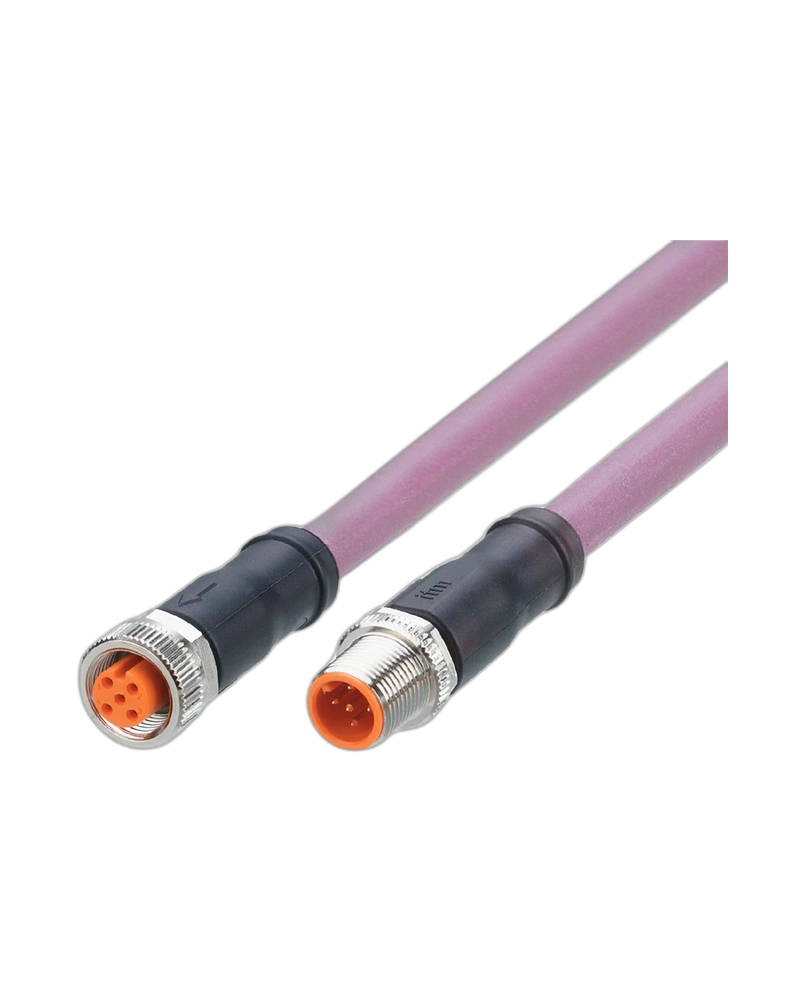

IFM EVC962 connection cable is a shielded CAN bus cable with integrated 120 Ω terminating resistor. It provides reliable communication and is suitable for flexible industrial automation and mobile machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
CAN Bus Connection with Termination
EVC962 is designed for CAN bus applications and incorporates a 120 Ω CAN bus terminating resistor into the M12 connector. This helps provide appropriate termination at the end of a CAN bus network.
Flexible Industrial Cable
The cable uses PUR construction with shielding and is designed for applications requiring repeated movement. It supports drag-chain applications with more than 5 million bending cycles.
Reliable Environmental Protection
The cable supports IP67, IP68 and IP69K protection when properly connected. The M12 connector features gold-plated contacts and a robust locking arrangement for reliable industrial installation.
Integrated CAN bus termination
Reliable signal transmission
Shielded cable construction
Suitable for drag-chain applications
High bending-cycle capability
Robust M12 connection
Suitable for demanding industrial environments
CAN Bus Networks
Factory Automation
Machine Tools
Mobile Machines
Industrial Controllers
Automation Equipment
| Specification | Details |
|---|---|
| Product Model | EVC962 |
| Order Code | VDOGH050MSE0002C05STGH050MSS |
| Product Type | Connection Cable |
| Application | CAN Bus |
| Cable Length | 2 m |
| Operating Voltage | 32 V DC |
| Max. Current Load | 4 A |
| Conductors 4 + 5 | 5 V / 0.05 A |
| Cable Type | PUR |
| Cable Colour | Purple |
| Cable Diameter | Approx. 8.4 mm |
| Cable | Shielded |
| Terminating Resistor | 120 Ω |
| Connector | M12, straight |
| Coding | A-coded |
| Contacts | Gold-plated |
| Protection Rating | IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +80 °C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Seal Material | FKM |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Max. Travel Speed | 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
