IFM EVC946 connecting cable with plug provides a 5 m shielded PUR cable with an angled 5-pin M12 A-coded connector for reliable CAN bus communication in industrial automation and mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC946 provides a 5 m connection length for CAN bus systems where greater installation distance is required.

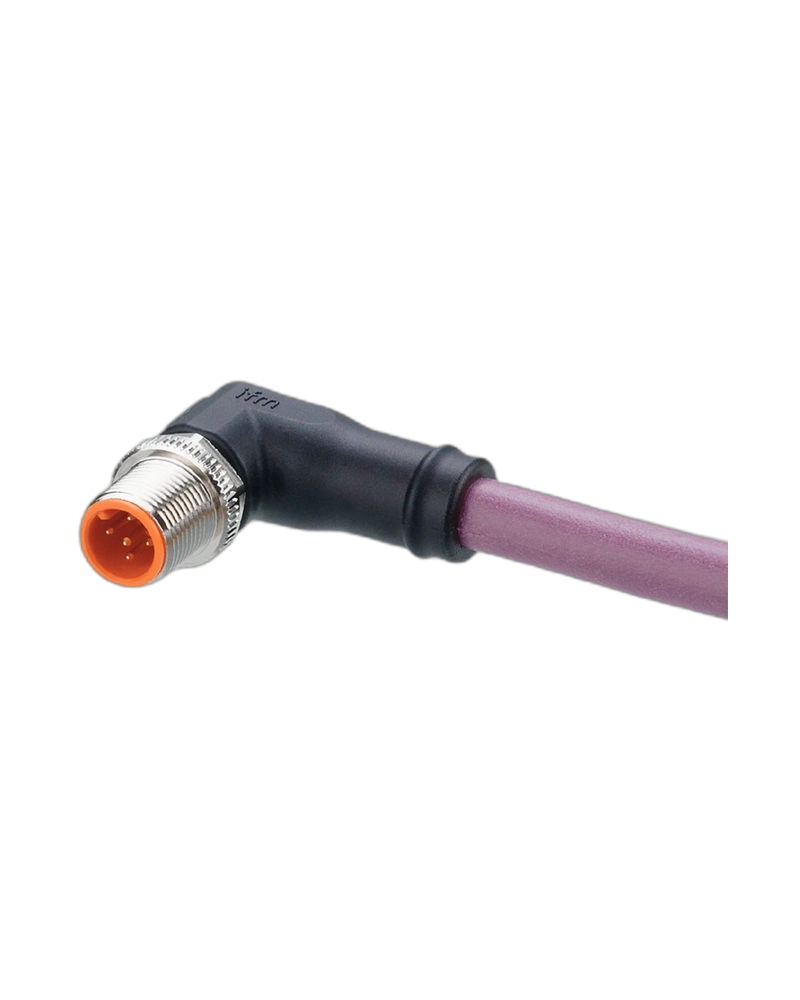

The angled 5-pin M12 A-coded plug helps provide convenient cable routing around machinery and control equipment.
The cable features a lilac, shielded and halogen-free PUR construction. The cable diameter is 8.4 mm and it is designed for industrial applications.
The EVC946 supports drag-chain applications and is designed to withstand repeated movement, vibration and shock. IFM specifies IP67, IP68 and IP69K protection for the product.
5 m Cable: Provides extended connectivity.
Angled M12 Plug: Helps optimise cable routing.
Shielded PUR Cable: Supports reliable communication.
5 Gold-Plated Contacts: Supports dependable electrical performance.
Drag-Chain Suitable: Supports dynamic installations.
High Protection Rating: Suitable for demanding industrial environments.
CAN Bus Networks
CANopen
Mobile Machinery
Factory Automation
Machine Tools
Industrial Controllers
Sensors and Actuators
Dynamic Automation Systems
| Specification | Details |
|---|---|
| Product Code | EVC946 |
| Article Number | ASTAH050MSD0005C05 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Lilac |
| Cable Diameter | 8.4 mm |
| Cable Type | Shielded |
| Connector | M12 Plug |
| Orientation | Angled |
| Coding | A |
| Contacts | 5, Gold-plated |
| Operating Voltage | <30 V AC / <36 V DC |
| Max. Current Load | 4 A |
| Protection | IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Application | CAN Bus |
| Pack Quantity | 1 pc |
