IFM EVC937 Ethernet connection cable provides a 6 m shielded PUR PROFINET cable with straight M12 D-coded and RJ45 connectors for reliable Industrial Ethernet networking in automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC937 provides 6 m of cable length for industrial networking applications requiring extended connectivity between automation components.

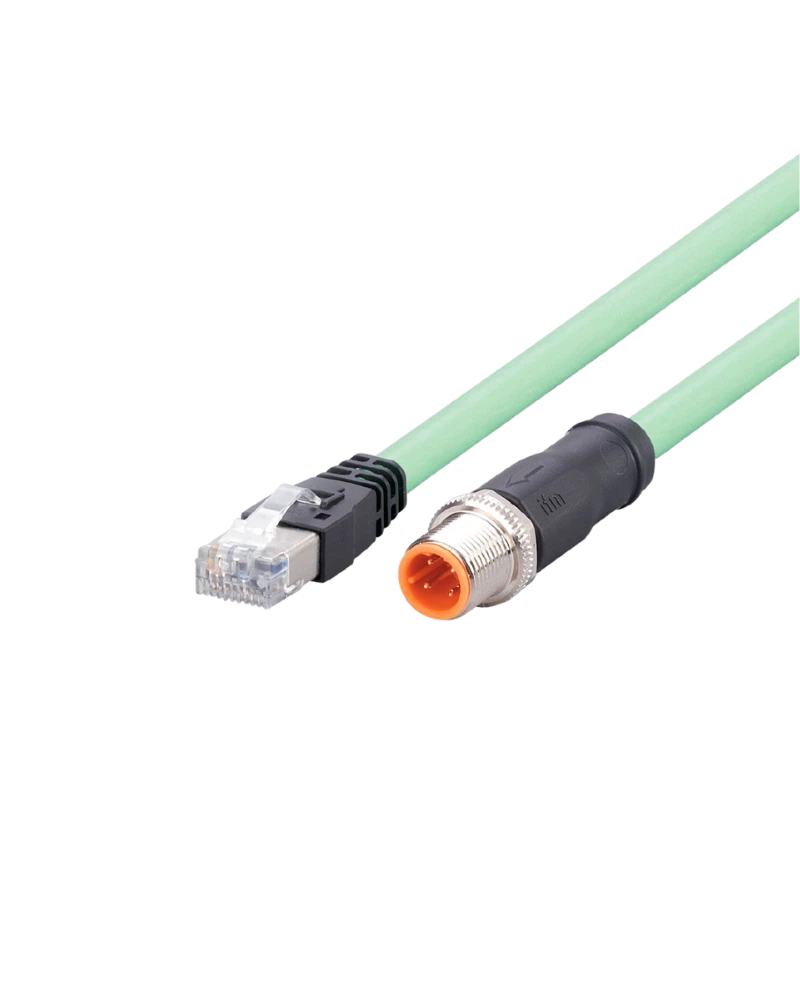

The cable features a straight M12 D-coded connector and a straight RJ45 connector, providing a practical Ethernet interface combination.
The cable is green, shielded and halogen-free, with PROFINET Type C construction and 4 × 0.34 mm² conductors.
The EVC937 is suitable for drag-chain applications and supports a minimum bending radius of 10 times the cable diameter. The datasheet specifies a maximum travel speed of 3.3 m/s under stated conditions and more than 3 million bending cycles.
6 m Length: Provides extended connection distance.
Straight M12 Connector: Supports standard industrial installation.
Shielded Construction: Helps reduce electromagnetic interference.
Drag-Chain Suitability: Supports dynamic machine applications.
High Bending-Cycle Capability: Suitable for repeated cable movement.
Industrial Ethernet
PROFINET
Factory automation
Robotic machinery
Moving machine components
Cable chains
Machine tools
Production systems
| Specification | Details |
|---|---|
| Product Code | EVC937 |
| Article Number | VSTGN040MSS0006K04STGP040--S |
| Product Type | Ethernet Connection Cable |
| Cable Length | 6 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| M12 Coding | D |
| M12 Contacts | 4, gold-plated |
| Connector 2 | RJ45, straight |
| RJ45 Contacts | Gold-plated |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s under specified conditions |
| Bending Cycles | > 3 million |
| Pack Quantity | 1 pc |
