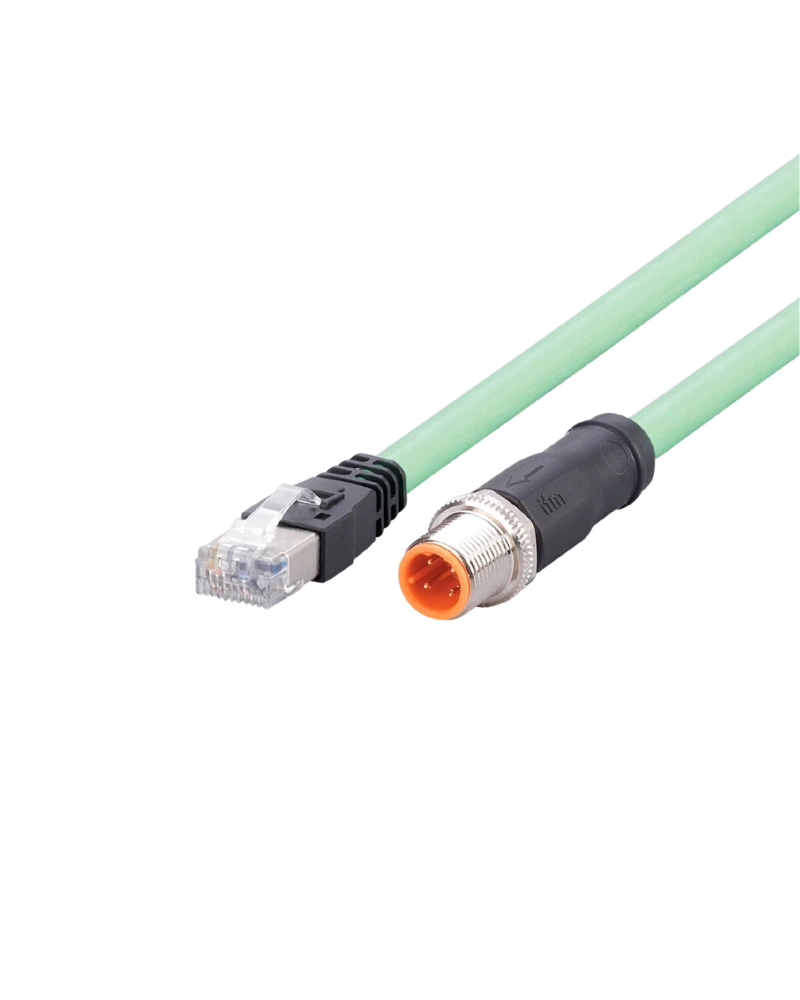

IFM EVC926 Ethernet connection cable features a 2 m shielded PUR PROFINET cable with straight M12 D-coded and RJ45 connectors. It provides dependable Industrial Ethernet connectivity for automation and machine networking applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC926 provides a 2 m connection length for Industrial Ethernet installations where additional cable reach is required.
The cable uses a straight M12 D-coded connector on one end and a straight RJ45 connector on the other, allowing connection between compatible industrial Ethernet interfaces.
The green PUR cable is shielded and halogen-free, with PROFINET Type C construction and 4 × 0.34 mm² conductors.
The robust M12 connector, gold-plated contacts and protected cable construction make the EVC926 suitable for demanding automation environments.
2 m Length: Provides flexible connection distance.
M12 to RJ45 Connectivity: Supports integration between different interfaces.
Shielded Construction: Helps reduce electrical interference.
Halogen-Free PUR Sheath: Supports industrial durability.
Robust M12 Connector: Provides reliable machine connectivity.
Industrial Ethernet
PROFINET
Factory automation
Industrial networking
Control systems
Machine tools
Production machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Code | EVC926 |
| Article Number | VSTGN040MSS0002K04STGP040--S |
| Product Type | Ethernet Connection Cable |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| M12 Coding | D |
| M12 Contacts | 4, gold-plated |
| Connector 2 | RJ45, straight |
| RJ45 Contacts | 8, gold-plated |
| Housing | TPU / PC |
| Application | Industrial Ethernet |
| Protection | IP65 / IP67* |
| Pack Quantity | 1 pc |
