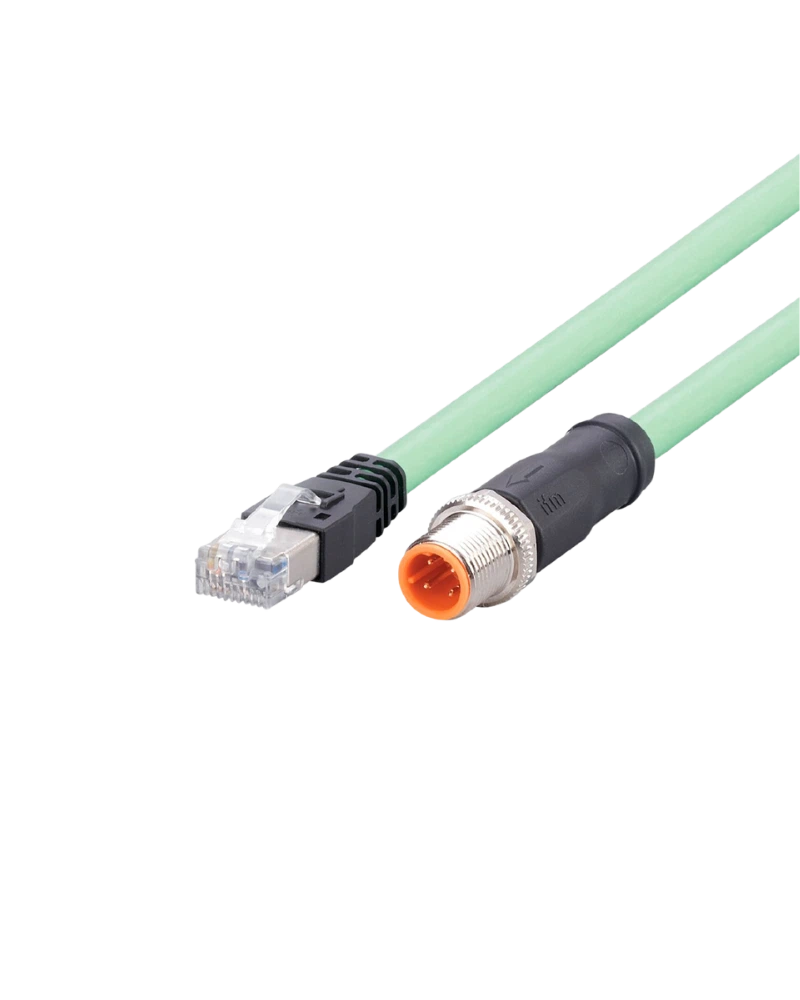

IFM EVC925 Ethernet connection cable provides a 1 m shielded PUR PROFINET cable with straight M12 D-coded and RJ45 connectors. It is suitable for reliable Industrial Ethernet communication in factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC925 provides a 1 m cable length for connecting Industrial Ethernet equipment positioned within a short distance of each other.
One end uses a straight M12 D-coded Industrial Ethernet connector while the other uses a straight RJ45 connector, providing compatibility between different Ethernet interfaces.
The cable is constructed using green shielded PUR with halogen-free properties and 4 × 0.34 mm² conductors.
The M12 connector uses gold-plated contacts and a robust TPU housing, while the RJ45 connector uses gold-plated contacts and a PC housing.
1 m Cable Length: Suitable for standard machine connections.
M12 to RJ45 Design: Provides flexible Industrial Ethernet connectivity.
Shielded PUR Cable: Supports electromagnetic compatibility.
Gold-Plated Contacts: Helps maintain dependable electrical connections.
Industrial Construction: Suitable for automation environments.
Industrial Ethernet
PROFINET
Factory automation
Industrial switches
Control cabinets
Automation controllers
Machine networking
Production equipment
| Specification | Details |
|---|---|
| Product Code | EVC925 |
| Article Number | VSTGN040MSS0001K04STGP040--S |
| Product Type | Ethernet Connection Cable |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| M12 Coding | D |
| M12 Contacts | 4, gold-plated |
| Connector 2 | RJ45, straight |
| RJ45 Contacts | 8, gold-plated |
| Housing | TPU / PC |
| Application | Industrial Ethernet |
| Pack Quantity | 1 pc |
