IFM EVC924 Ethernet connection cable combines a 0.5 m shielded PUR PROFINET cable with a straight M12 D-coded connector and straight RJ45 connector for reliable Industrial Ethernet communication in automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC924 is an Ethernet connection cable designed to connect industrial devices with an M12 Industrial Ethernet interface to equipment using an RJ45 connection.
Its 0.5 m cable length is suitable for short-distance connections inside control cabinets, machines and compact automation installations.
The green PUR cable is shielded and halogen-free. It uses a PROFINET Type C construction with 4 × 0.34 mm² conductors.

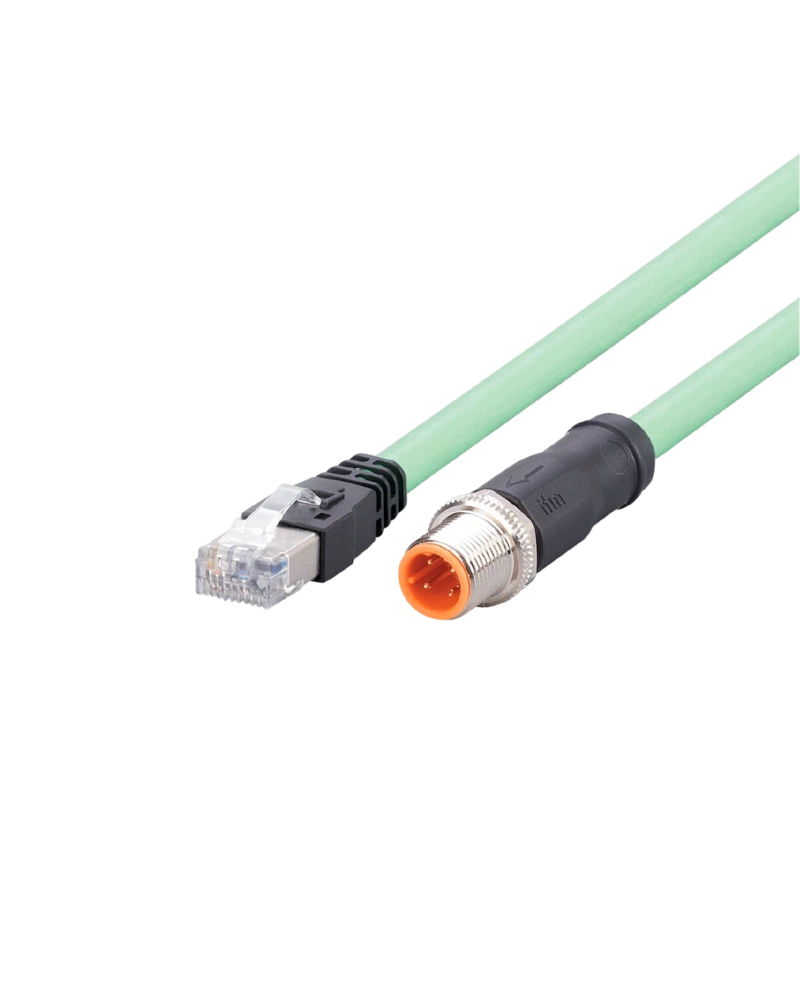

The cable features a straight M12 D-coded connector with gold-plated contacts and a straight RJ45 connector with gold-plated contacts. This combination supports reliable Industrial Ethernet connectivity.
Compact 0.5 m Length: Ideal for short device connections.
M12 to RJ45 Interface: Connects different Industrial Ethernet connector formats.
Shielded Cable: Helps reduce electromagnetic interference.
Gold-Plated Contacts: Supports reliable signal transmission.
PUR Sheath: Provides robust industrial cable protection.
Industrial Ethernet
PROFINET networks
Factory automation
Control cabinets
Industrial switches
Automation controllers
Machine networking
Production machinery
| Specification | Details |
|---|---|
| Product Code | EVC924 |
| Article Number | VSTGN040MSS00,5K04STGP040--S |
| Product Type | Ethernet Connection Cable |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| M12 Coding | D |
| M12 Contacts | 4, gold-plated |
| M12 Housing | TPU, black |
| Connector 2 | RJ45, straight |
| RJ45 Contacts | 8, gold-plated |
| RJ45 Housing | PC |
| Application | Industrial Ethernet |
| Pack Quantity | 1 pc |
