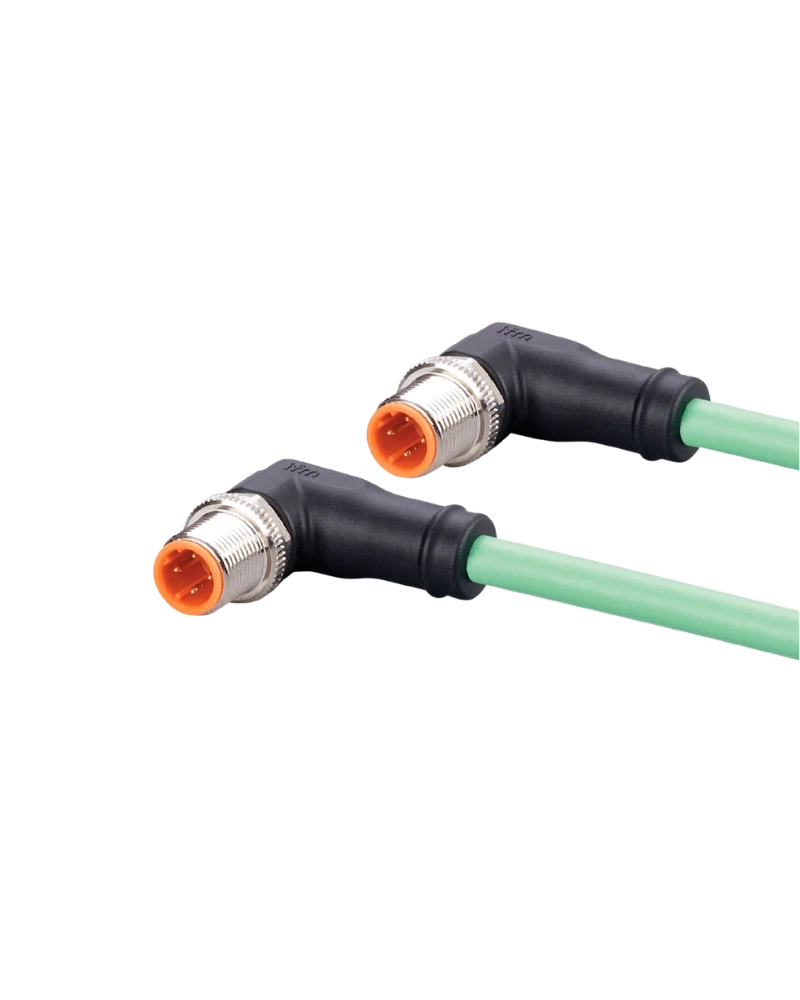

IFM EVC923 connection cable provides a 20 m shielded PUR cable with angled M12 D-coded connectors at both ends. It is designed for extended Industrial Ethernet connections in automation systems and industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC923 provides a 20 m connection length for Industrial Ethernet applications requiring longer cable runs between automation components.
Its angled M12 D-coded connectors provide improved cable-routing flexibility around machinery, control panels and industrial equipment.
The green PUR cable is shielded and halogen-free, helping provide reliable communication and improved electromagnetic compatibility.
The cable is designed with a high protection rating and robust M12 Industrial Ethernet connectors for demanding industrial applications. IFM lists the EVC923 as suitable for harsh industrial environments and cable-chain applications.
20 m Reach: Suitable for longer machine and production-line connections.
Angled M12 Connectors: Helps simplify cable routing.
Shielded Cable: Supports stable Ethernet communication.
Halogen-Free Sheath: Provides durable industrial protection.
High Protection Rating: Suitable for demanding industrial environments.
Industrial Ethernet
PROFINET
Factory automation
Production lines
Machine tools
Industrial networking
Automation machinery
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC923 |
| Article Number | VSTAN040MSS0020K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | Gold-plated |
| Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Application | Industrial Ethernet |
| Protection | IP65 / IP67 |
| Operating Temperature | -25 to +90 °C |
| Cable Chain Suitability | Yes |
| Pack Quantity | 1 pc |
