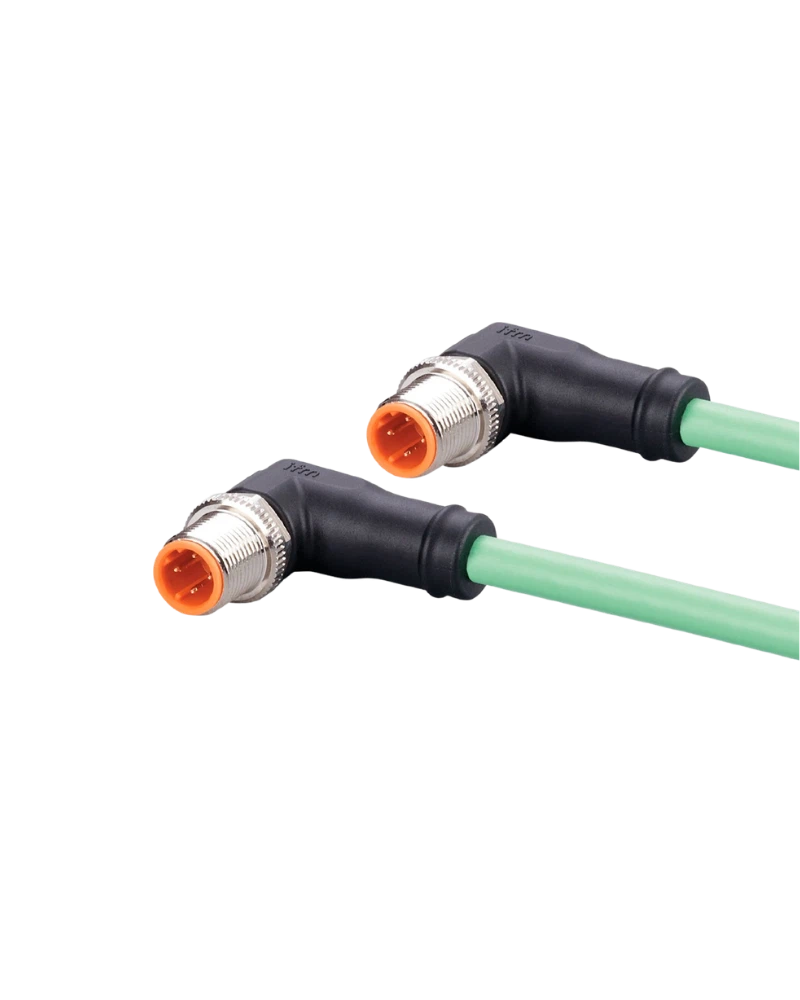

IFM EVC922 connection cable features a 10 m shielded PUR cable with angled M12 D-coded connectors at both ends. It provides reliable Industrial Ethernet connectivity for factory automation, machine networking and demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC922 is a 10 m connection cable designed for reliable Industrial Ethernet communication in automation systems. It provides extended connectivity between compatible industrial networking components.
Both ends feature robust angled M12 D-coded connectors, making the cable suitable for installations where connector orientation and cable routing are important.
The cable uses a green, shielded and halogen-free PUR sheath. The shielded construction helps improve electromagnetic compatibility and supports stable communication in industrial environments.
The EVC922 is designed for demanding industrial conditions with a high protection rating, robust M12 connectors and a wide operating temperature range. IFM also specifies suitability for cable chains.
10 m Cable Length: Provides extended connectivity between industrial Ethernet devices.
Angled M12 Connectors: Supports flexible installation and cable routing.
Shielded Construction: Helps reduce electromagnetic interference.
Halogen-Free PUR Sheath: Provides durable industrial cable protection.
Industrial-Grade M12 Design: Supports reliable machine connectivity.
Industrial Ethernet networks
PROFINET systems
Factory automation
Machine networking
Production machinery
Industrial control systems
Automation equipment
Machine tools
| Specification | Details |
|---|---|
| Product Code | EVC922 |
| Article Number | VSTAN040MSS0010K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded |
| Halogen-Free | Yes |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | Gold-plated |
| Connector Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Application | Industrial Ethernet |
| Protection | IP65 / IP67 |
| Operating Temperature | -25 to +90 °C |
| Cable Chain Suitability | Yes |
| Pack Quantity | 1 pc |
